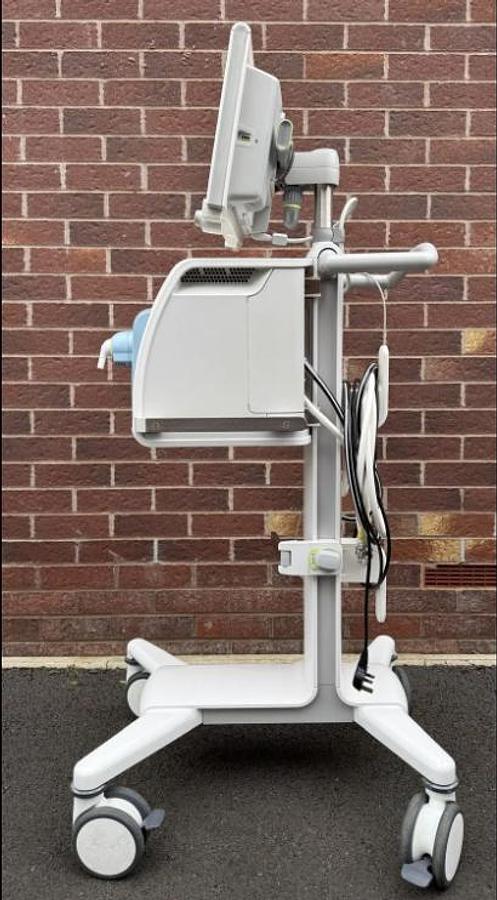

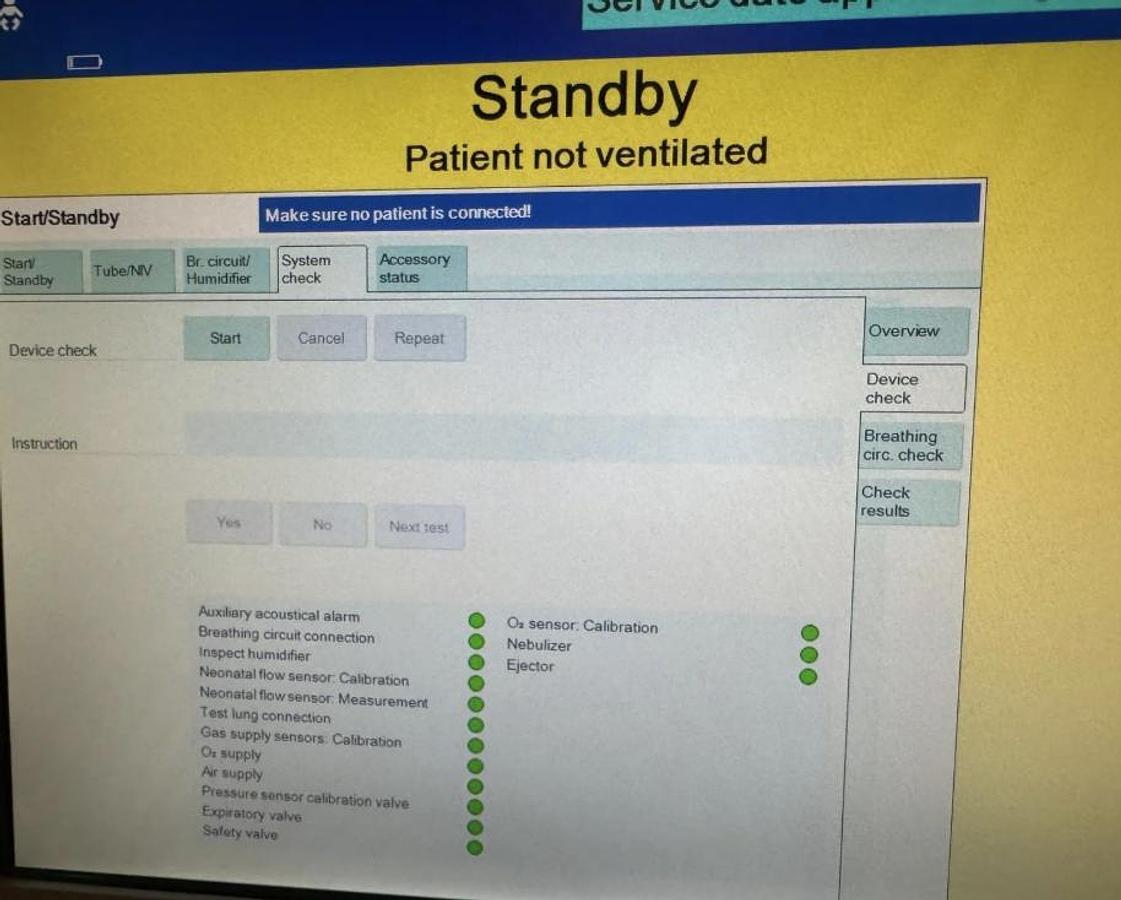

BABYLOG VN500 (for pediatric and neonate use)

TECHNICAL DATA

Patient type Neonatal and pediatric patients

Ventilation settings

Ventilation modes Pressure-controlled ventilation:

– PC-CMV

– PC-AC

– PC-SIMV

– PC-PSV

Support of spontaneous breathing:

– SPN-CPAP/PS

– SPN-CPAP

Enhancements – Apnea ventilation

– AutoRelease (in PC-APRV)

– Flow trigger

– Leak Compensation

– Sigh

– Smart Pulmonary View

Special procedures – Suction maneuver

– Manual inspiration/hold

– Medication nebulization (optional)

Therapy types – Invasive ventilation (tube)

– O2 therapy

Respiratory rate (RR) 0.5 to 150/min

Inspiratory time (Ti) 0.1 to 3 s

Maximum inspiratory time for flow cycled breaths (Timax) Neonates 0.1 to 1.5 s

Pediatric patients 0.1 to 4 s

Tidal volume (VT) Neonates 2 to 100 mL

Pediatric patients 20 to 300 mL

Inspiratory flow (Flow) Neonates 2 to 30 L/min

Pediatric patients 2 to 30 L/min

Tidal volume during Apnea Ventilation (VTapn) Neonates 2 to 100 mL

Pediatric patients 20 to 300 mL

Respiratory rate during Apnea Ventilation (RRapn) 2 to 150/min

Inspiratory pressure (PINSP) 1 to 80 mbar (cmH2O)

Inspiratory pressure limit (PMAX) 2 to 100 mbar (cmH2O)

Positive end-expiratory pressure (PEEP) 0 to 35 mbar (cmH2O)

Rise time for pressure support (Slope) Neonates 0 to 1.5 s

Pediatric patients 0 to 2 s

O2 concentration FiO2 21 to 100 Vol%

Trigger sensitivity (Flow trigger) 0.2 to 5 L/min

Automatic Tube Compensation (ATC) Inner diameter of the tube (Tube Ø)

– Endotracheal tube (ET)

Pediatric patients 2 to 8 mm (0.08 to 0.31 in)

Neonates 2 to 5 mm (0.08 to 0.2 in)

– Tracheostomy tube (Trach.)

Pediatric patients 2.5 to 8 mm (0.1 to 0.31 in)

– Degree of compensation 0 to 100%

Leakage compensation – On / Off

– On: full compensation active

– Off: trigger compensation active

O2 therapy Continuous Flow 2 to 50 L/min

O2 concentration FiO2 21 to 100 Vol%

Displayed Measured values

Airway pressure measurement Positive end-expiratory pressure (PEEP)

Peak inspiratory pressure (PIP)

Mean airway pressure (Pmean)

Minimum airway pressure (Pmin)

Lower pressure level in APRV (Plow)

End-inspiratory pressure for mandatory breaths (EIP)

Upper pressure level in APRV (Phigh)

Range -60 to 120 mbar (cmH2O)

Flow measurement (proximal)

Minute volume measurement Expiratory minute volume (MVe)

Inspiratory minute volume (MVi)

Mandatory expiratory minute volume (MVemand)

Spontaneous expiratory minute volume (MVspon)

Spontaneous expiratory minute volume (MV)

Range 0 to 30 L/min BTPS

Tidal volume measurement Tidal volume (VT)

Inspiratory tidal volume (not leakage compensated) of mandatory breaths (VTimand)

Expiratory tidal volume (not leakage compensated) of mandatory breaths (VTemand)

Inspiratory tidal volume (not leakage compensated) of spontaneous breaths (VTispon)

Range 0 to 1,000 mL BTPS

Respiratory rate measurement Respiratory rate (RR)

Mandatory respiratory rate (RRmand)

Spontaneous respiratory rate (RRspon)

Range 0 to 300/min

O2 measurement (inspiratory side) Inspiratory O2 concentration (in dry air) (FiO2)

Range 18 to 100 Vol%

CO2

 measurement in mainstream (pediatric patients only) End-expiratory CO2 concentration (etCO2)

Range 0 to 100 mmHg

DRÄGER BABYLOG® VN500 | 03

Displayed calculated values

Compliance (C) Range 0 to 650 mL/mbar (mL/cmH2O)

Resistance (R) Range 0 to 1,000 mbar/L/s (cmH2O/L/s)

Leakage minute volume (MVleak) Range 0 to 30 L/min (BTPS)

Rapid Shallow Breathing (RSB) Range Neonates 0 to 300 (/min/mL)

Range Pediatric patients 0 to 9,999 (/min/L)

Curve displays Airway pressure Paw (t) -30 to 100 mbar (cmH2O)

Flow (t) -40 to 40 L/min

Volume V (t) 2 to 300 mL

Exp. CO2 concentration (etCO2) 0 to 100 mmHg

Alarms / Monitoring

Expiratory minute volume (Mve) High / Low

Airway pressure (Paw) High / Low

Insp. O2 concentration (FiO2) High / Low (automatic)

End-expiratory CO2 concentration (etCO2) High / Low

Respiratory rate (RR) High

Volume monitoring (VT) Low (automatic)

Apnea alarm time (Tapn) 5 to 60 seconds

Disconnect alarm delay time (Tdisconnect) 0 to 60 seconds

Nurse call (optional)

Performance characteristics

Control principle time-cycled, pressure-controlled, volume-constant

Inspiratory flow (BTPS) max. 60 L/min

Base flow, neonates 6 L/min

Base flow, pediatric patients 3 L/min

Inspiratory valve Valve remains in open position should medical gas fail to provide sufficient inspiratory flow.

Enables spontaneous breathing of ambient air conditions.

Endotracheal suction

Disconnection detection automatic

Reconnection detection automatic

Initial oxygen enrichment max. 3 minutes

Active suction phase max. 2 minutes

Final oxygen enrichment max. 2 minutes

Oxygen enrichment for suction maneuver Factor for neonates 1 to 2

Factor for pediatric patients 1 to 2

Maneuver settings

Sigh pressure (ΔintPEEP) 0 to 20 mbar (cmH2O)

Time interval between sighs (Interval sigh): 20 s to 180 min

Number of cycles for a sigh (Cycles sigh): 1 to 20 exhalations

Medication nebulization for 5, 10, 15, 30 minutes

Control principle time-cycled, pressure-controlled, volume-constant

Inspiratory flow (BTPS) Pediatric patients 2 to 30 L/min

Neonates 2 to 30 L/min

Operating data

Mains power supply

Mains power connection 100 V to 240 V, 50/60 Hz

Current consumption

at 230 V max. 1.4 A

at 230 V max. 3.0 A

Inrush current approx. 8 to 24 A peak

approx. 6 to 17 A quasi RMS

Power consumption

maximum 300 W

during ventilation, without charging the battery approx. 100 W ventilation unit with Medical Cockpit

approx. 180 W with GS500

Digital machine output Digital output and input via an RS232 C interface Dräger MEDIBUS and MEDIBUS.X

Gas supply

O2 gauge pressure 2.7 to 6.0 bar (39 to 87 psi)

Air gauge pressure 2.7 to 6.0 bar (39 to 87 psi)

Physical Specifications

Dimensions (W x H x D)

Babylog® VN500 and Infinity® C500 420 mm × 685 mm × 410 mm (16.5 in x 27.0 in x 16.1 in)

Babylog® VN500 and Infinity® C500 on trolley 577 mm × 1420 mm × 678 mm (22.7 in × 55.1 in × 26.7 in)

Weight

Babylog® VN500 and Infinity® C500 approx. 25 kg (55.1 lbs)

Babylog® VN500 and Infinity® C500 on trolley approx. 59 kg (130 lbs)

GS500 approx. 10.5 kg (23 lbs)

PS500 approx. 27 kg (59.5 lbs)

Adapter for 38 mm pole approx. 2.35 kg (5.18 lbs)

Infinity® C500

Diagonal screen size 17” TFT color touch screen

Input / Output ports – RS232 (9-pin) connectors

– USB ports for data collection

– 1 DVI for digital video output

– RJ 45 Ethernet connectors (service purposes only)
