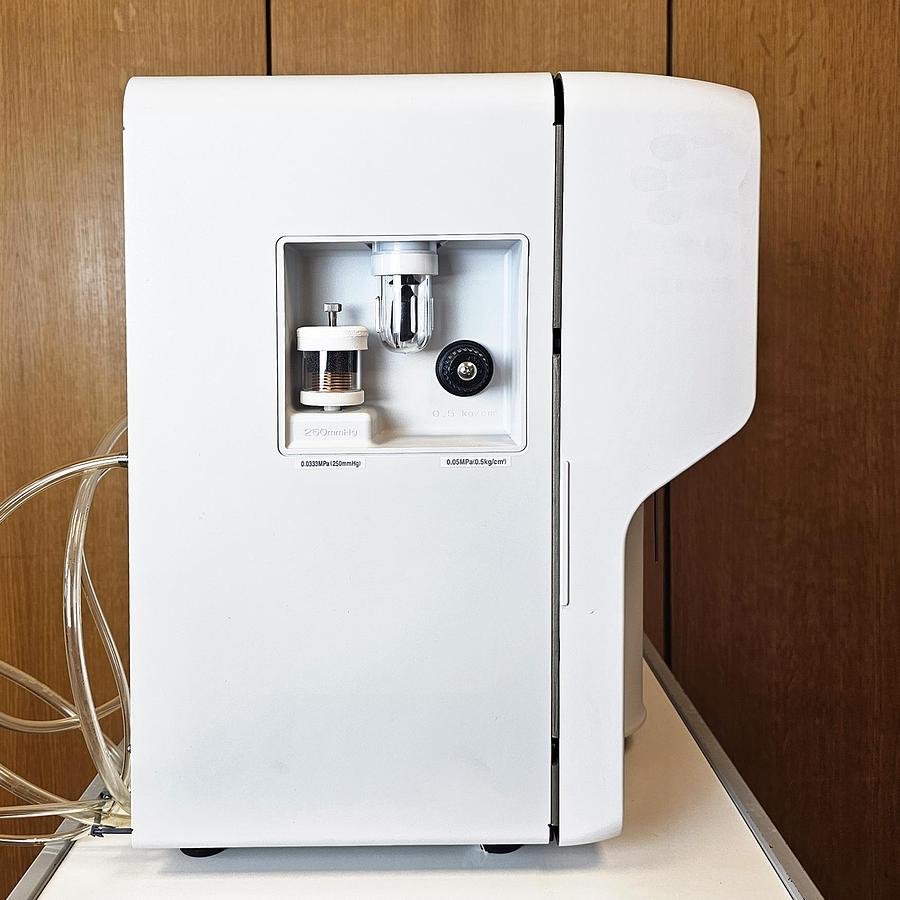

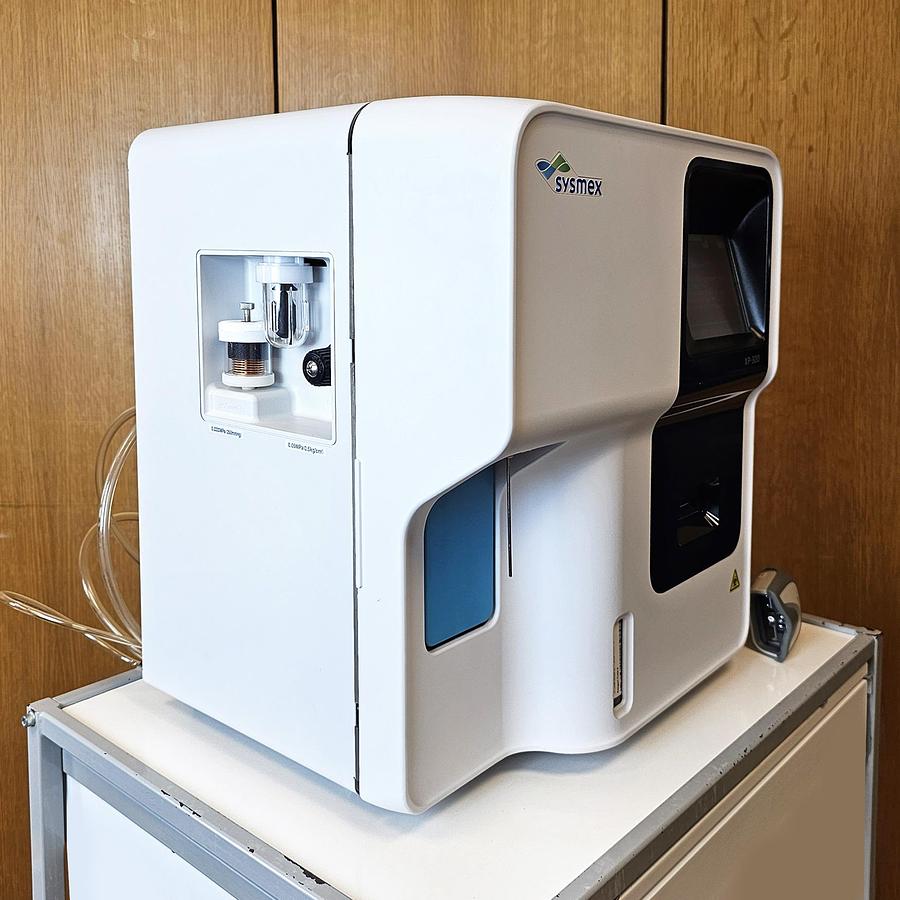

SYSMEX X100 FULLY AUTOMATIC HEMATOLOGY ANALYZER TESTING SYSTEM

SYSMEX X100 Fully Automatic Hematology Analyzer Testing System

GENERAL INFORMATION

• Throughput: 60 samples/hour

• Principle: Triangle laser scattering and sheath flux for GB differentiation, counting and impedance for GR and PLA, cyanide-free method for HB

• Channels: 2

• Opening diameter: GR/PLA tray: 70 μm

• Histograms: 4 diffusion grams, 2 histograms (including GR and PLA histograms)

• HB lamp: 530nm LED

• Sample volume

• Whole blood mode: 20 μl, pre-diluted mode: 20 μl

SOFTWARE

• Calibration: Manual, automatic, and fresh blood calibration

• Counting methods: Whole blood, capillary whole blood, prediluted

• Print: Automatic printing, manual printing

• SIL: LIS support

REAGENT

• Reagent: Standard: diluent: 20 L, DIFF lysis: 500 mL, LH lysis: 100 mL

• Cleaner: Standard: probe cleaner: 50 ml

TECHNICAL SPECIFICATIONS

• Input; 10.4-inch touchscreen, keyboard, mouse

• Output: Internal printer, supports external printer

• Printer paper: 57×35 mm

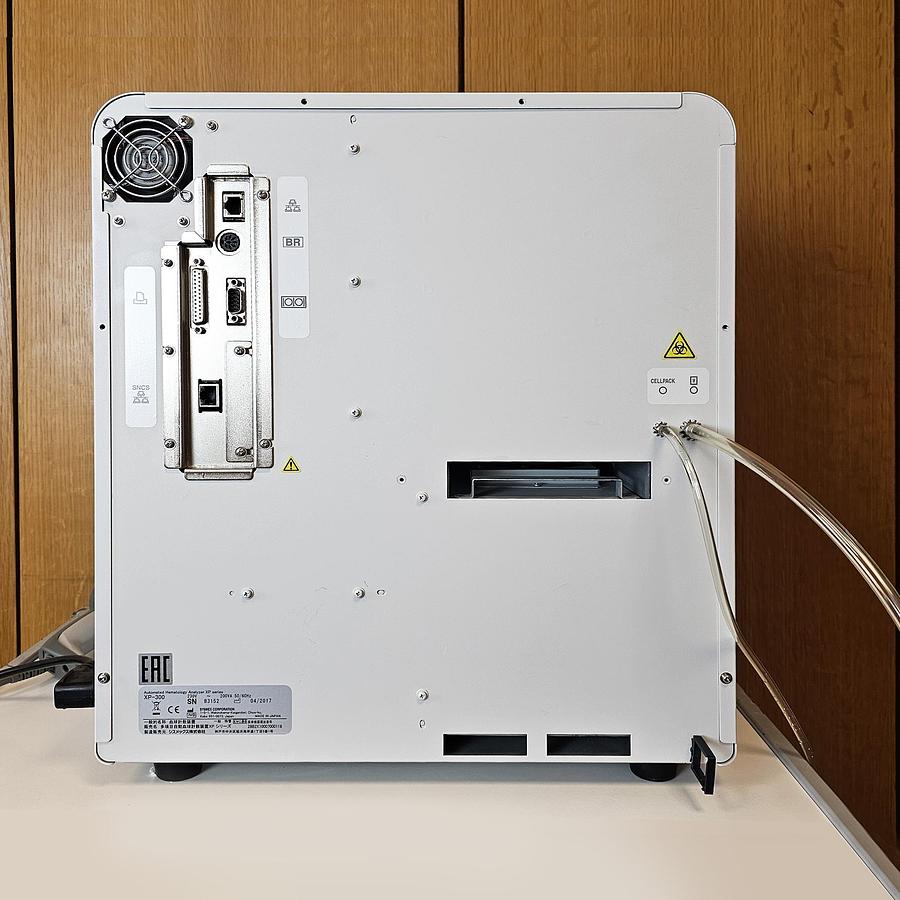

• Interface: RS232 port, 4 USB ports, 1 network port

• Storage: 50,000 results with histogram

• Dimensions: 430 x 350 x 435 mm

• Blockage cleared: High voltage, high-pressure flush

• Net weight: 28 kg

OTHERS

• Working temperature: 10-30°C.

• Power requirements: 100 to 240 AC, 50/60 Hz, 300 VA

• Atmospheric pressure: 70.0 kPa–106.0 kPa
