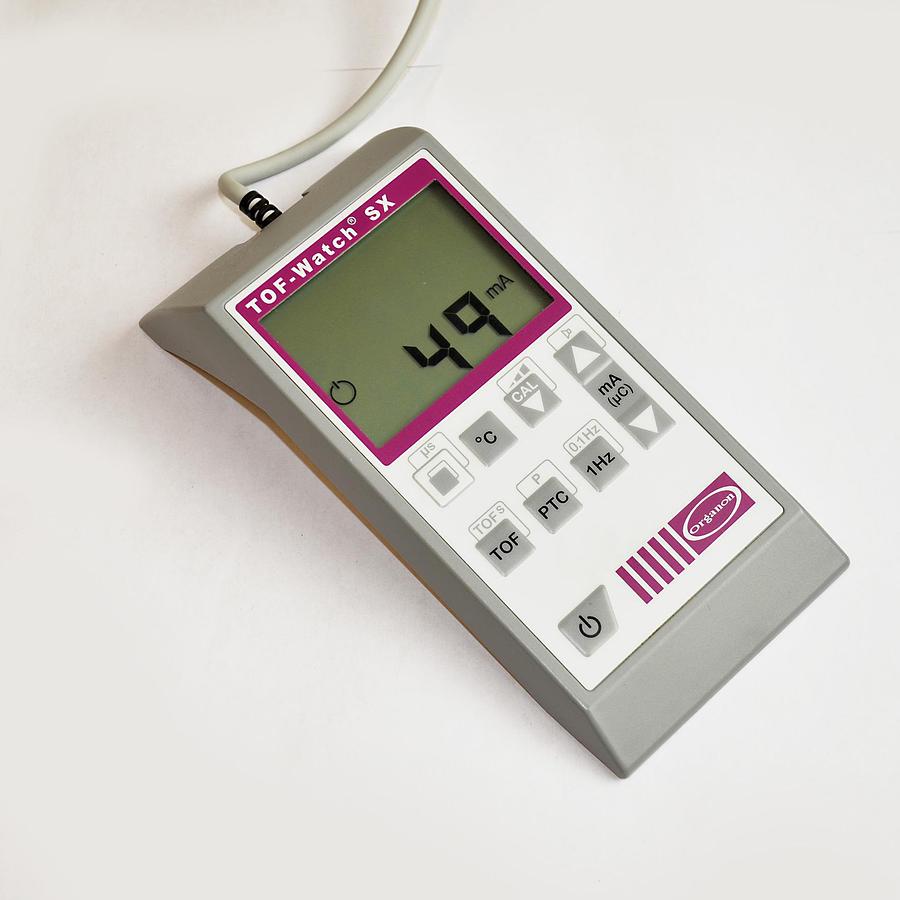

TOF-WATCH NEUROMUSCULAR TRANSMISSION MONITOR

Organon's TOF-Watch is a compact monitor for objective neuromuscular transmission tracking, used in the operating room and anesthesia settings. It allows for precise measurement of the level of neuromuscular blockade induced by curarizing agents (NMBA). Thanks to acceleromyography technology, it provides clinicians with an immediate and reliable TOF reading. Designed for simplicity and convenience, the TOF-Watch integrates easily into daily clinical routines.

FEATURES

• Technology: Acceleromyography with piezoelectric transducer

• Display: Clear screen showing continuous results

• Interface: Easy-to-clean membrane keyboard

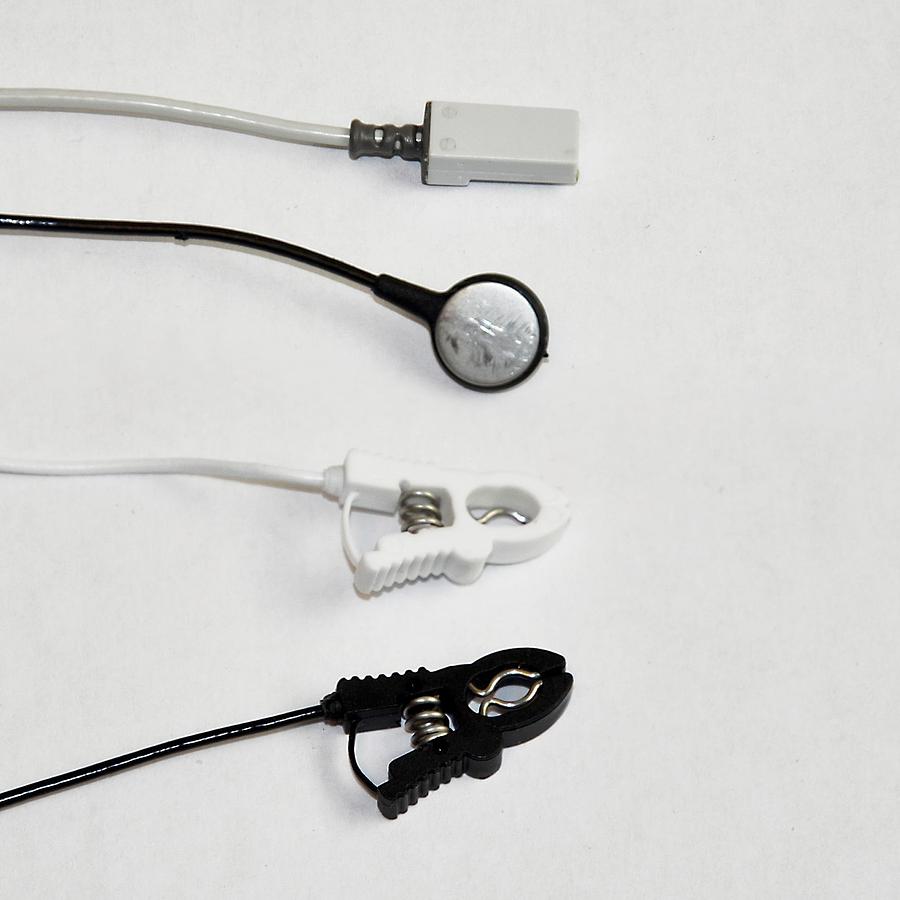

• Detection: Recognition of the transducer and stimulation cables

• Use: Continuous or intermittent monitoring

• Warning: Low battery indicator

TECHNICAL DETAILS

• Stimulation: TOF, PTC, 1 Hz ST, 0.1 Hz ST, DBS (3.3/3.2), Tetanic (50 Hz or 100 Hz)

• Current: 0–60 mA (impedance ≤ 5 kΩ)

• Pulse: 200 µs single-phase

• Calibration: With current set by the user

• Automatic shut-off: After 2 hours of inactivity

• Nerve localization: 1 Hz mode, 0–6 mA current, 40 µs pulse
