ECG SCHILLER MS2010

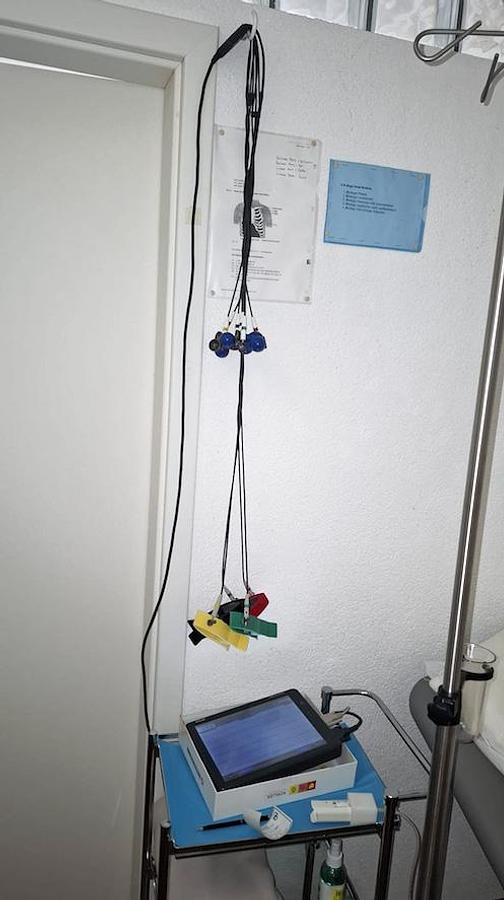

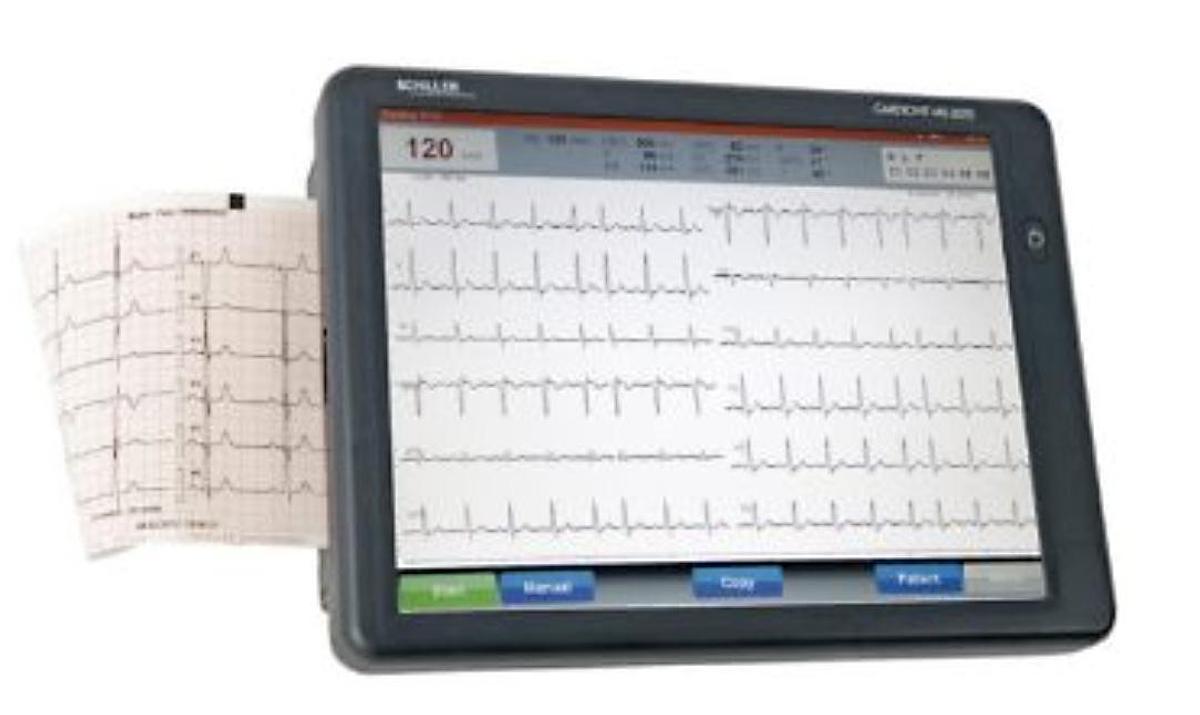

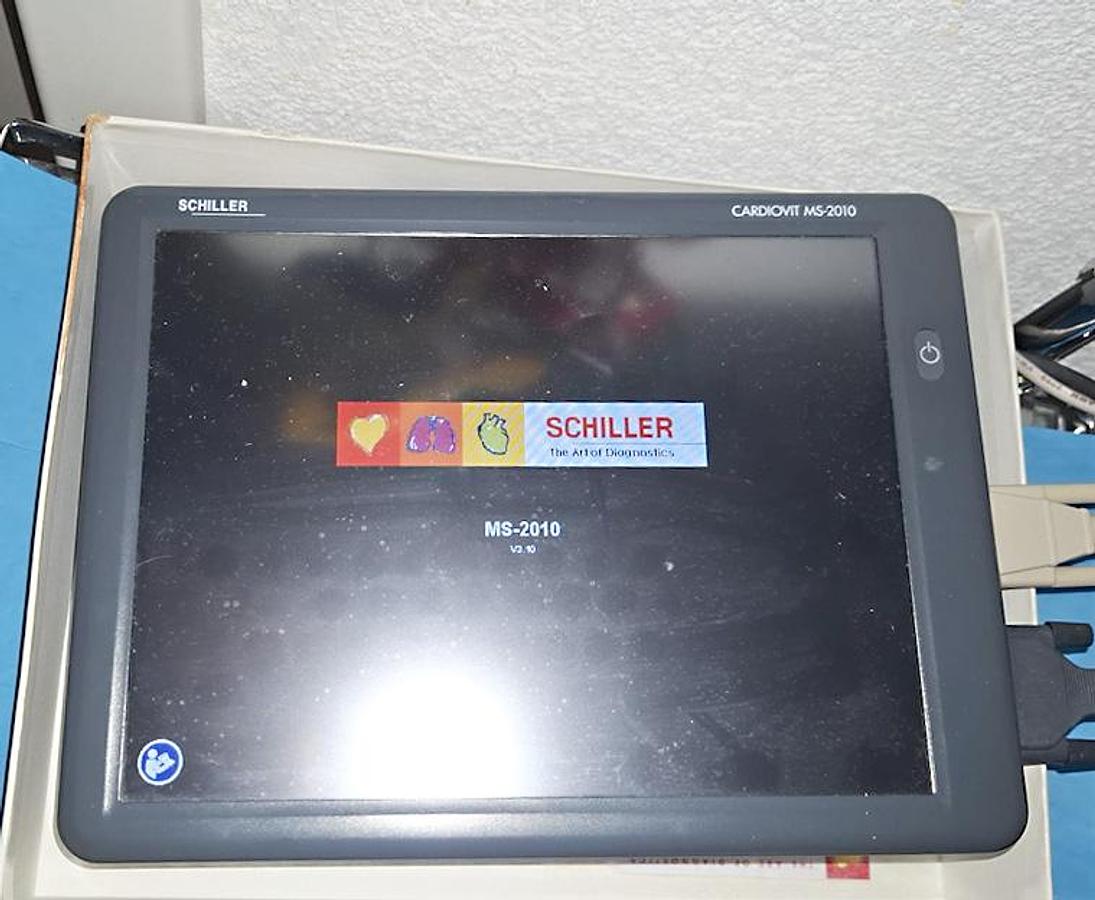

The SCHILLER MS-2010 is a resting (and stress) ECG presented as a touchscreen tablet, equipped with powerful interpretation software (adults/children), an integrated printer and a system for exporting ECG files to your computer/network.

STATE-OF-THE-ART TREATMENT,

NO WAITING TIME

• Instant start for immediate use

• ECG processing, interpretation, and printing in less than 3 seconds after acquisition

QUICK ENTRY

• Fast and accurate patient data entry using the touchscreen or barcode scanner. You can also download patient data or work lists from SEMA or the HIS using standard formats such as HL-7 or DICOM Modality Worklist 1.

CLINICAL EXCELLENCE

• Schiller's "C" interpretation software for children and adults –

one of the best-documented algorithms for ECG analysis

simultaneous 12-derivation, offering uncompromising quality and reliability.

• Your most valuable tool for obtaining a clinically reliable second opinion.

• Early detection of a STEMI, SCHILLER developed the Culprit Coronary Artery

Algorithm (CCAA), which allows for precise and immediate localization.

of a coronary occlusion with early detection of a STEMI.

• Not only does our algorithm reduce the waiting time before the patient is seen; it is also the only algorithm that can identify

precisely where the coronary artery occlusion is located, indicating the size of the area at risk!

ONE-CLICK CONFIGURATION

• The MS-2010 can be configured to automatically print, save, transfer and retrieve a previous ECG – simply by pressing a button.

• Connection via LAN, WLAN or GPRS to SEMA or SIH.

• Export of resting ECG reports in PDF format

• Automatic execution of operations

• Obtain, print, save, transfer, and retrieve ECGs from

diagnostics to and from SEMA or SIH – and this automatically

• Supports HL-7 or DICOM Modality 1 work lists.

Electrical characteristics:

• Power supply: Mains or battery

• Voltage: 100 to 240 V

• Current: 0.3 A (115 V) to 0.16 A (240 V)

• Frequency: 50/60 Hz

• Battery type: User-replaceable rechargeable polymer battery.

• Capacity: 100 ECG prints or 3 hours of continuous display (without printing).

• Recharge time: Approximately 3 hours after a full discharge (monitor off).

• Power consumption: Approximately 40 VA

Mains frequency filter: Distortion-free suppression of superimposed 50 or 60 Hz sinusoidal interference through adaptive digital filtering

ECG amplifier:

• Sampling rate: 4,000 samples/second/channel

• Measurement range: Dynamic ± 10 mV, DC ± 300 mV

• Pacemaker detection: > ± 2 mV / pulse width > 0.1 ms

• Frequency range: 0 Hz – 150 Hz (IEC/AHA) / 0.05 Hz – 300 Hz (for children and SAECG)

• CMRR: > 100 dB

• Digital resolution: 5 µV / 18 bits

• Input impedance: 100 MΩ

• Patient leakage current: < 5 µA

• Patient entry circuit: Fully floating and isolated, protected against defibrillation

• Defibrillation protection: 5000 V DC

Special recording functions:

• Detection of false contacts: Electrode, electrode impedance, overvoltage, AC noise, baseline fluctuations, and muscle tremors

• Heart rate measurement: up to 300 beats per minute

Standard interfaces:

• Interface for monitoring the exercise ECG:

• RS-232 serial interface (V24): Spirometry (Spirovit 250 or 260 sensor)

• QRS trigger output: TTL, +/- 10 V

• USB x 1: USB connection for USB peripherals, e.g., barcode scanner (optional), external USB keyboard, USB flash drive, or laser printer

Printer:

• Printing technology: High-resolution thermal printing, 8 dots/mm (amplitude axis), 16 dots/mm (temporal axis), at 25 mm/s

• Frequency range: 0.05 Hz – 150 Hz (IEC/AHA)

• Scrolling speed: 5, 10, 12.5, 25 and 50 mm/s

• Sensitivity: 2.5, 5, 10, 20 and 40 mm/mV

• Paper type: Thermoreactive, Z-folded, 114 mm wide, optimal positioning over a width of 105 mm (20 m of paper)

• Writing width: Manual printing on 3, 6 or 12 channels

• Dimensions: 258 x 193 x 50 mm (L/W/H)

• Weight: 1.5 kg (including rechargeable battery and paper)
