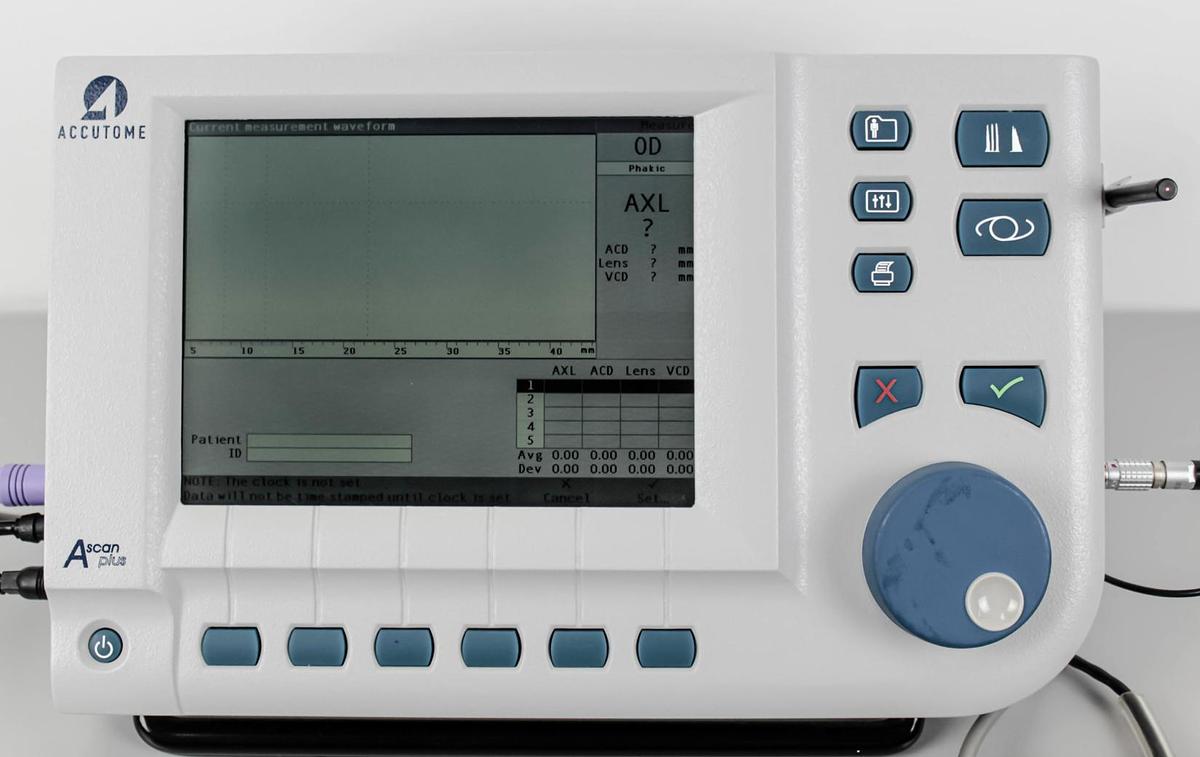

ACCUTOME A-SCAN PLUS A-SCAN BIOMETER

The Accutome A-Scan makes it easy to obtain extreme accuracy and improved patient outcomes. The advanced User Input knob provides unsurpassed ease of use and the straightforward Graphical User Interface guides you through every operation. Obtain accurate measurements with industry-leading signal acquisition and processing. Reliable design and efficient manufacturing provide excellent value. Upgradeable software protects your investment. The Accutome A-Scan lets you accomplish even the complex simply.

Features:

Large 7.5 inch, VGA Resolution LCD Screen with Super Intuitive User Interface

Rotary User Input knob and Dedicated Tactile Buttons

Compact, Portable Unit is Only 11.9” (L), 7.5” (W), 1.9” (Thick)

External, Universal Input, Worldwide Power Supply

Measurements:

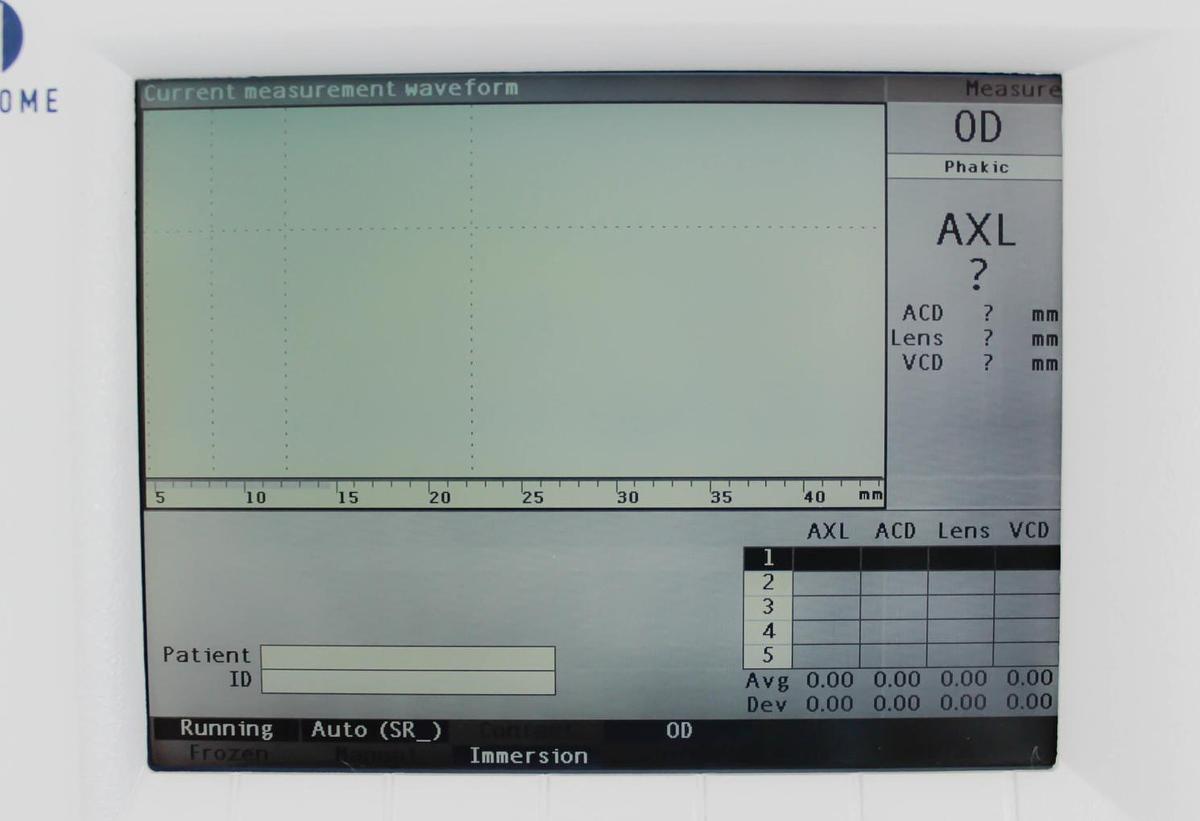

High-resolution, real-time waveform display with up to 8X zoom pinpoints tissue boundaries

Acquires over 4000 points per waveform

Continuous display of Axial Length, ACD, Lens Thickness, and Vitreous dimensions

Audible feedback of contact, signal quality, and capture

Immersion mode yields improved accuracy. Contact mode also supported

Automatically or Manually capture up to 5 waveforms for each eye

Fully Automatic or Operator Assisted adjustable Gain, Time Gates, and Amplitude Thresholds. Modify all waveform parameters using real-time or frozen waveforms

On-the-Fly customization handles unique patients

Predefined Eye Types and Velocities handle most situations such as phakic, dense cataract, pseudo-phakic, aphakic and even silicone oil filled eyes. All velocities are fully adjustable

IOL Calculations:

 Modern formulas including Hoffer Q, Holladay, SRK/T, and Haigis

 Compare results of all formulas simultaneously on a single screen for selected lenses

Instantly calculates emmetropic and targeted ametropic IOL powers for dozens of lenses, viewed three at a time, using the average of selected waveforms, a single waveform, or manually entered data

Conveniently group lenses by favorite designation such as surgeon, user, type, manufacturer, etc.

Personalization of Lens Constants is easy and straightforward, encouraging improved patient outcomes

Maintains individual Lens Constants for each formula. Clearly identifies which Lens Constant is used with the selected formula

Initially calculates all Lens Constants from a single entered A-Constant, ACD, or Surgeon Factor. Thereafter, entering postoperative results will quickly converge upon optimal personalized Lens Constants

Specifications:

Measurement Accuracy: 0.1 mm

Dimensions: 11.9″ x 7.5″ x 1.9″, Screen Size (7.2″)

Weight: 4 lbs, 6 oz

Display: LCD

Probe Frequency: 10 MHz

Probe Dimensions: 1.7″ Long

Probe Cable Length: 5 Feet

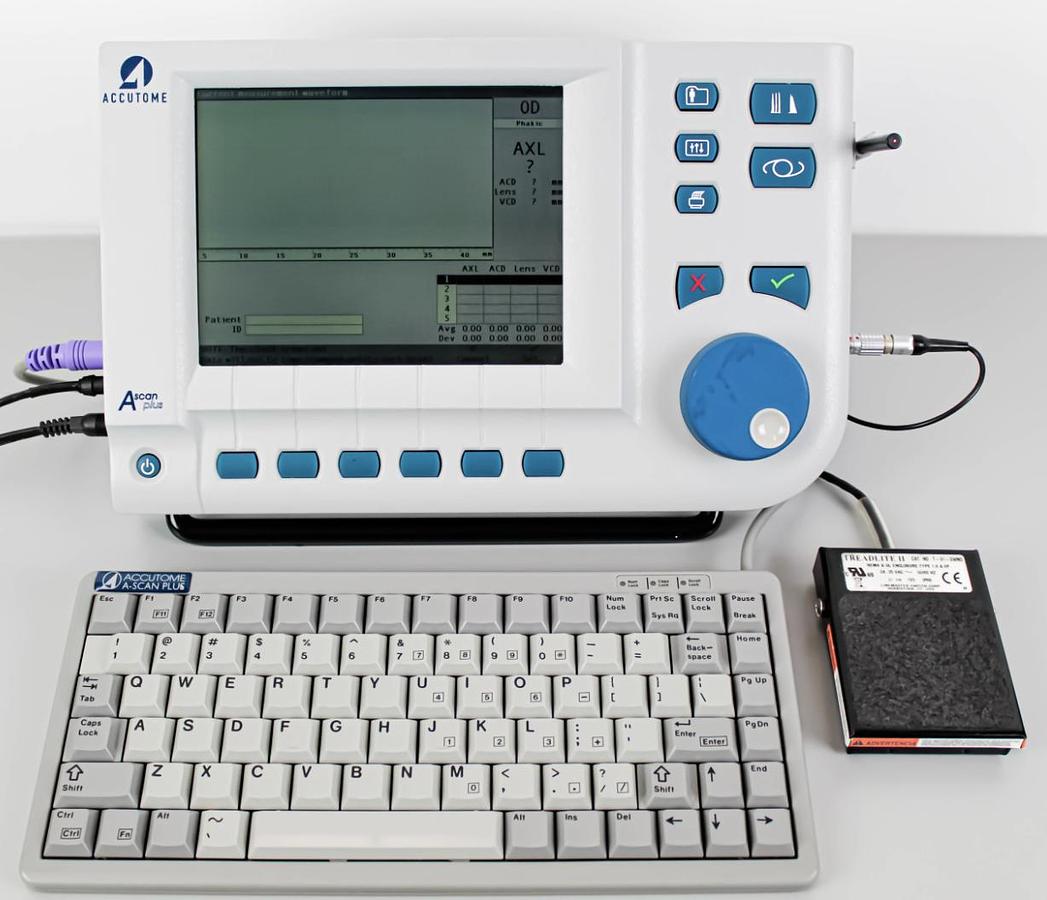

This Accutome A-Scan Plus comes equipped with:

Ultrasonic A-Scan Probe

Foot Pedal

Keyboard
