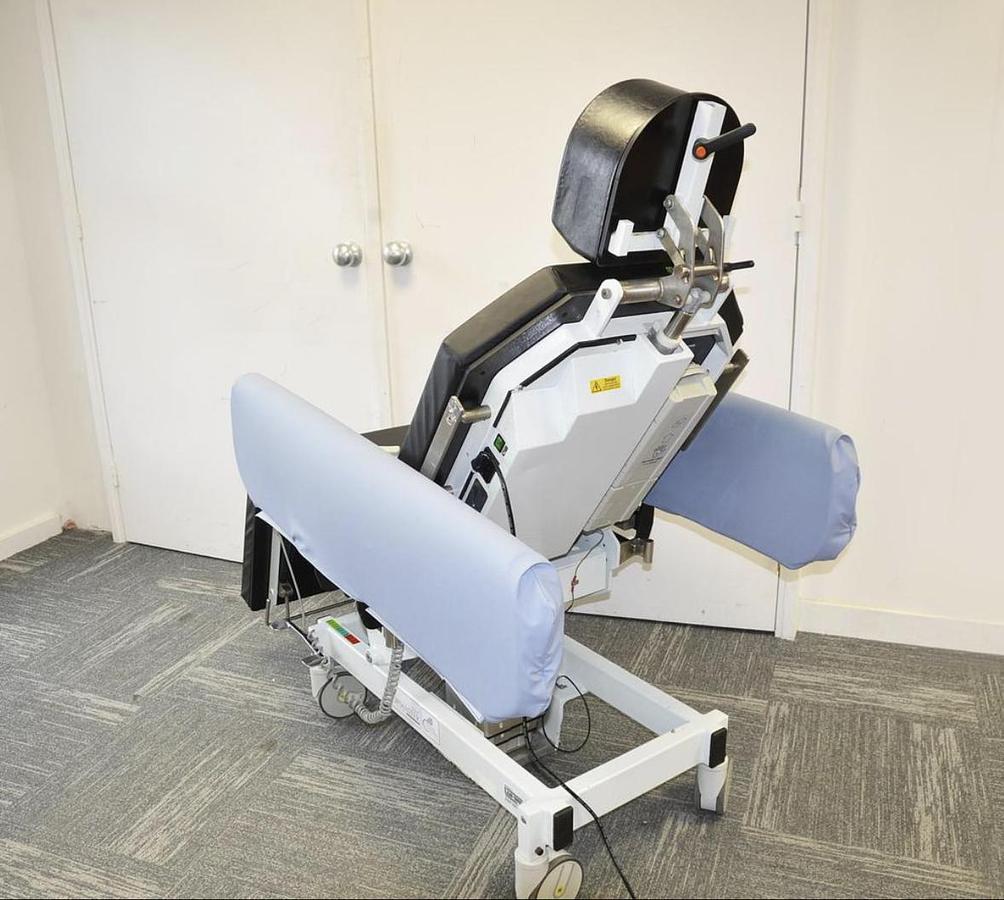

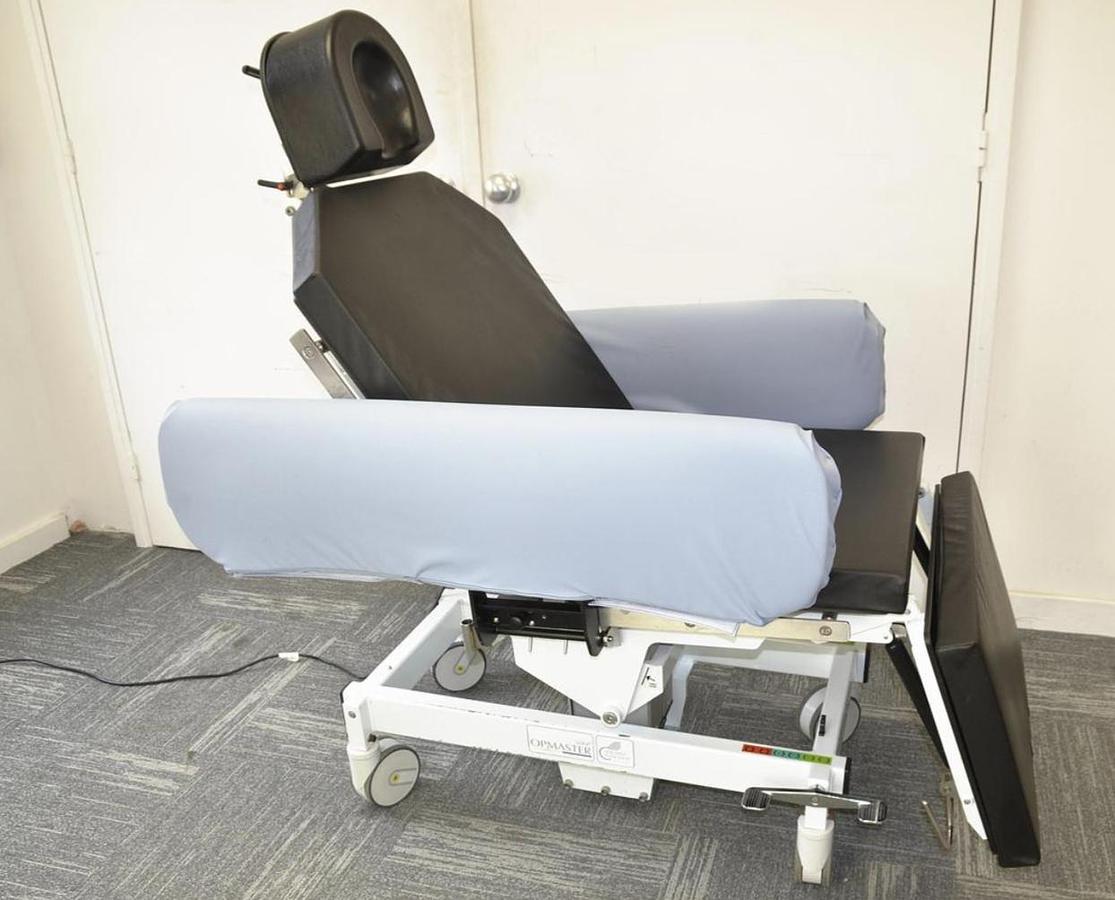

MOBILE OPERATING TABLE FOR AMBULATORY OPHTALMOLOGY/PLASTIC/ENT/BARIATRIC SURGERY

Description

The 506P’s phenolic panels can be modified and expanded to facilitate bariatric procedures, improving patient comfort through optimal positioning and reducing operator fatigue often due to excessive movements during procedures.

OPHTHALMIC INTERVENTIONS:

The 506P model features a motorized adjustable height that promotes an ideal working position, allowing surgeons and operating room staff to stay alert and protect themselves from

unnecessary efforts, while providing optimal access to the operating area. The elongated dorsal section and the judicious choice of motorised and finetuning head sections facilitate patient access while providing maximum legroom and for microscopic pedals. This model includes multi-position secondary joints that can be adjusted manually for specialized ophthalmic and other procedures. it is equipped with a motorized Trendelenburg position and an inverted motorized Trendelenburg position, as well as a back part, facilitating patient positioning and reducing the efforts for medical staff.

BARIATRIC INTERVENTIONS:

This versatile ophthalmic cart now supports a higher patient weight, up to 350 kg, making it suitable for bariatric surgery.

GENERAL APPLICATIONS:

Motorized flexibility in 4 sections. Can be used as an operating table.

Ease of handling makes all the difference in creating a safe, controlled and stress-free environment. Being able to safely handle the patient will facilitate the pre-operative preparation and post-operative cleaning of surgical teams.

The 506P model features a balanced design and robust construction, offering exceptional stability in all configurations.

It can be used as an operating table, transfer cart, alarm bed and chair.

Its low height reduces the efforts during transfers and allows the patient to sit directly on the table from the seated position, facilitating handling and nursing.

The 506P is distinguished by its motorized flexibility in four sections, swivel casters for optimal maneuverability, removable sides providing maximum patient accessibility and convenient infusion stem holders, eliminating the need for clamps.

FEATURES:

• Max. height to the top of the mattress: 1020 mm

• Min. height to top of mattress: 646 mm

• Length: 1990 mm

• Length in sitting position: 1300 mm

• Width above the mattress: 600 mm

• Width above side barriers: 640 mm

• Thickness of the mattress: 60 mm

SETTINGS

• Trendelenburg: 30°

• Inverted Trendelenburg: 8°

• Foot position: 90°

• Head position: +30°/-30°

• Inclination of the chair: 60°  3°

• Maximum load: 350 kg (Maximum patient weight)
