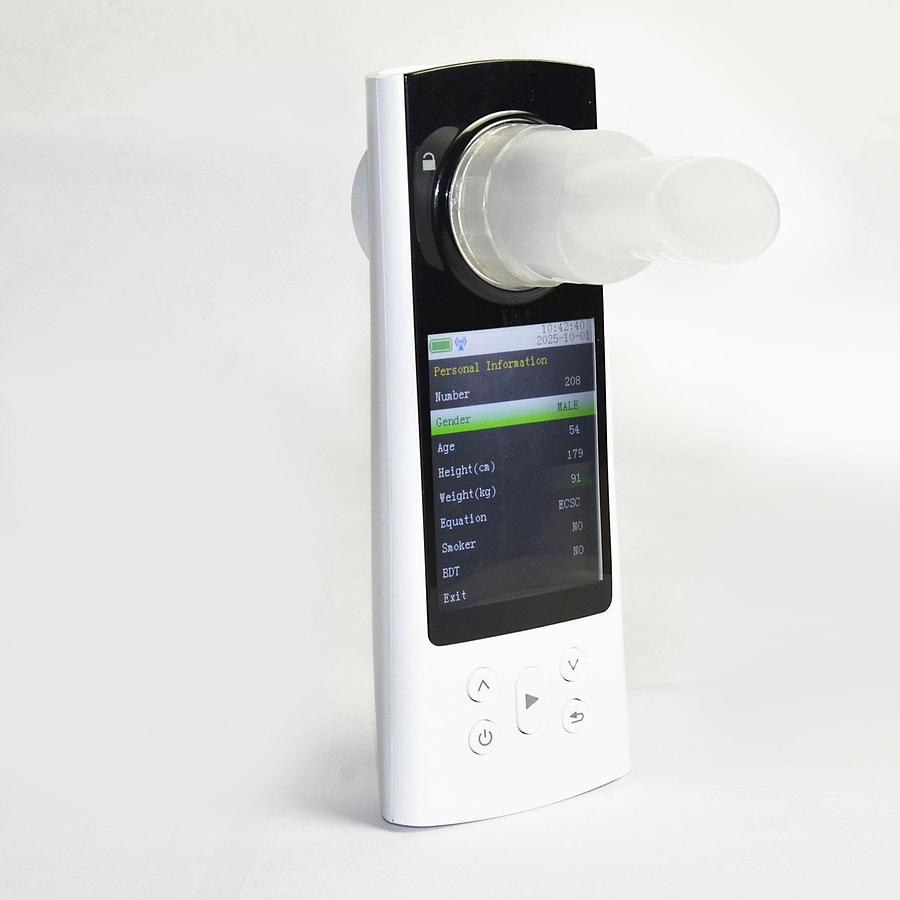

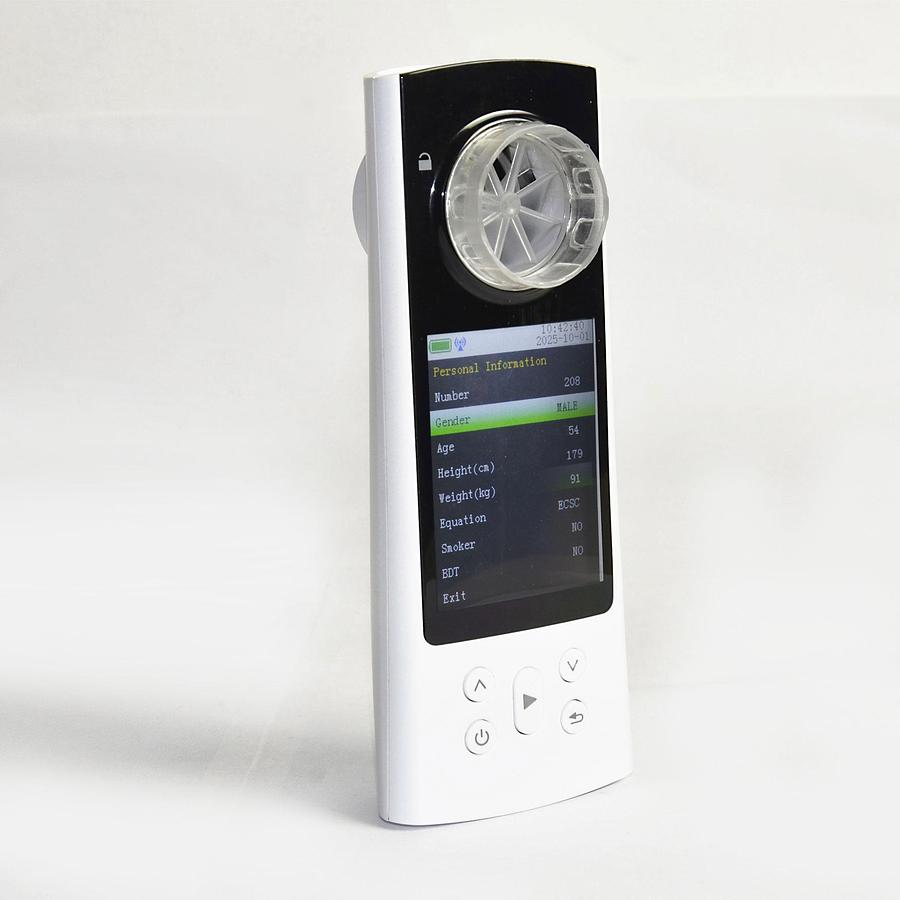

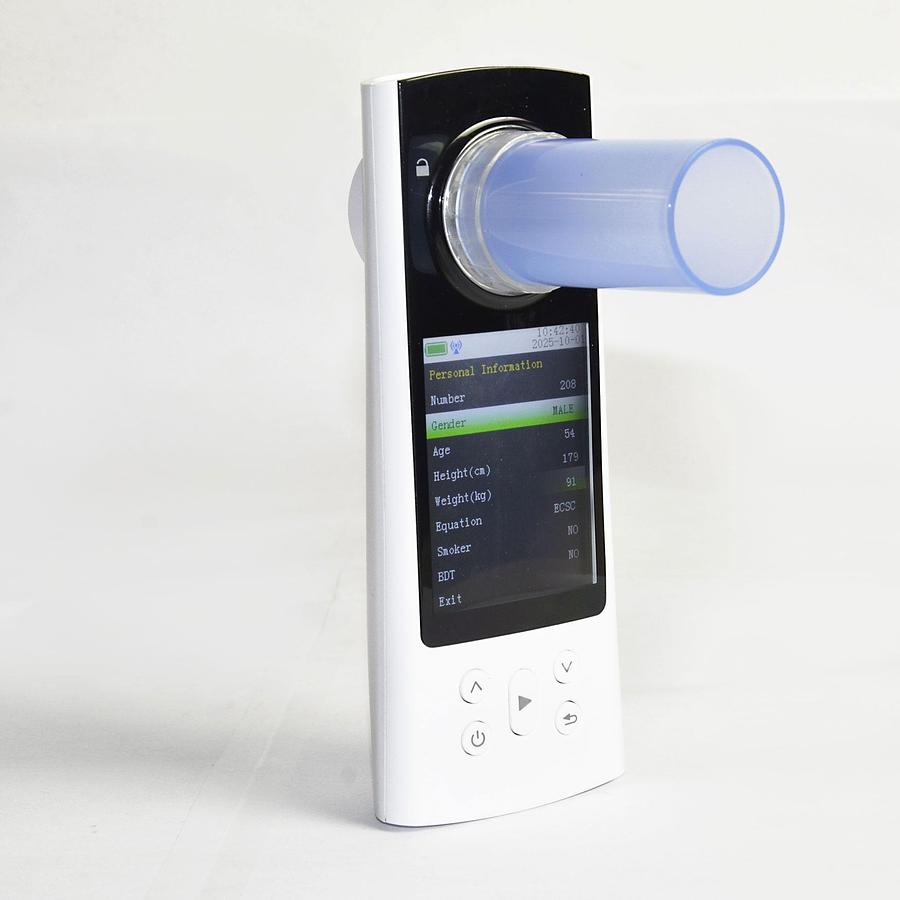

SP-80B PORTABLE SPIROMETE

Small and portable spirometer for examining lung function.

The high-definition screen directly displays the measured parameters, such as Forced Vital Capacity (FVC), Forced Expiratory Volume in One Second (FEV1), FEV1/FVC Ratio between Forced Expiratory Volume in One Second (FEV1) and Forced Vital Capacity (FVC), Peak Expiratory Flow (PEF), Forced Expiratory Flow at 25% of FVC (FEF25), Forced Expiratory Flow at 50% of FVC (FEF50), Forced Expiratory Flow at 75% of FVC (FEF75) and Forced Expiratory Flow 25~75% of FVC (FEF2575).

High precision and repeatability. Suitable for clinical hospitals, routine home testing.

• Patient information (height, age, sex, etc.) can be defined
• Display of flow-volume and volume-time curves
• Graphical display of trends
• Indication of health status
• Calibration function
• Ability to store, erase, load and review data
• Alert function when the volume and data rate limits are exceeded
• Expiration time is indicated in 6 seconds
• Data transmission via Bluetooth or USB cable
• Automatic shut-off after 2 minutes

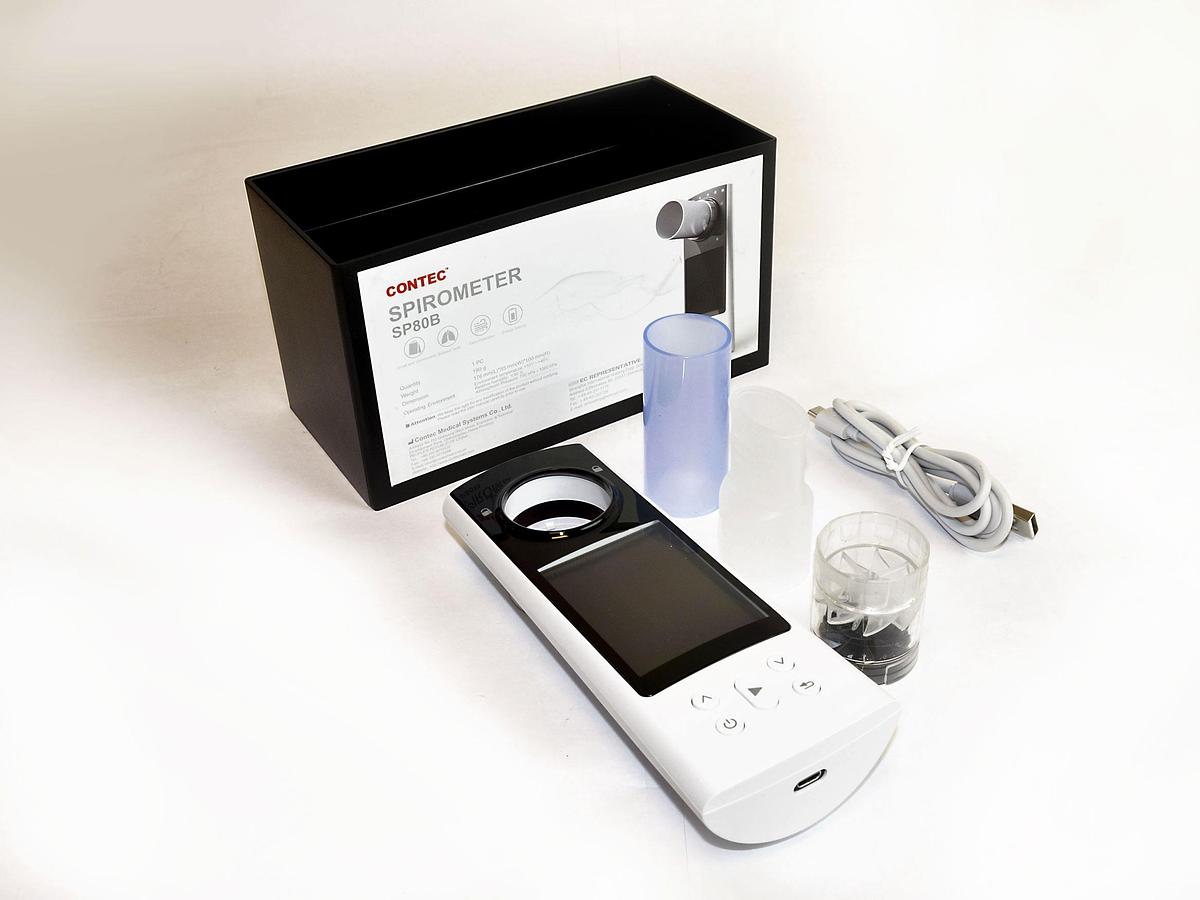

Supplied with USB cable, 2 disposable mouthpieces, PC software (GB, IT, ES, PT) and instruction manual GB, FR, IT, ES, PT, DE, PL, RO, SE, GR.

Technical specifications

Method: Turbine

Parameters: 8 parameters related to FVC (FVC, FEV1, FEV1/FVC PEF, FEF 25, FEF 50, FEF 75, FEF 2575)

Volume range: 0~10 l ± 3% or 0.05 l (highest)

Flow rate range: 0~16 l/s ± 5% or 0.2 l/s (highest)

Screen: 2.8" color LCD

Memory: 224 cases with graphs

Power supply: rechargeable lithium battery - 200 mA

Dimensions - weight: 160x65x45 mm - 190 g
