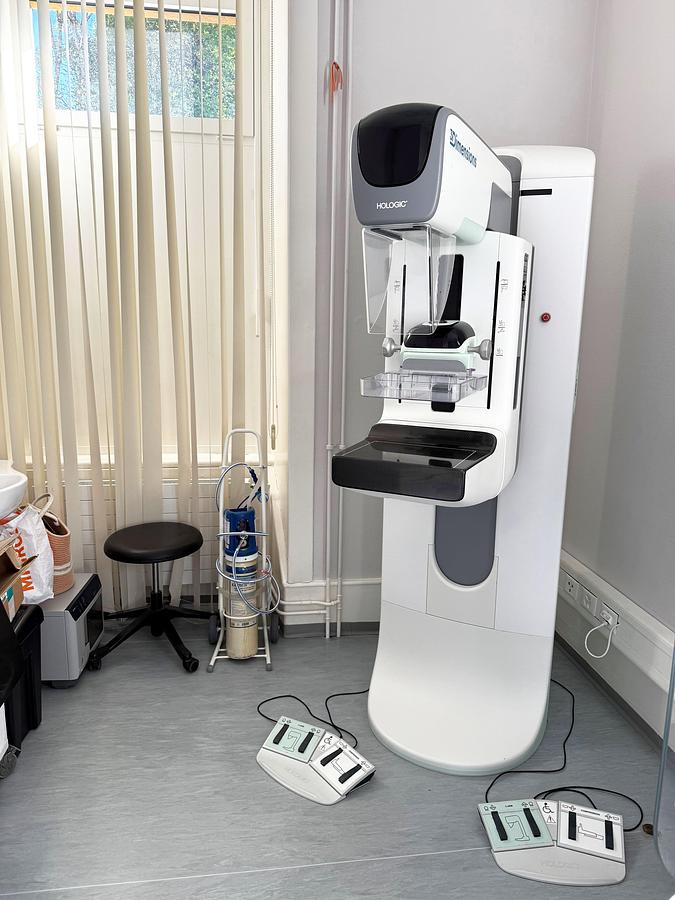

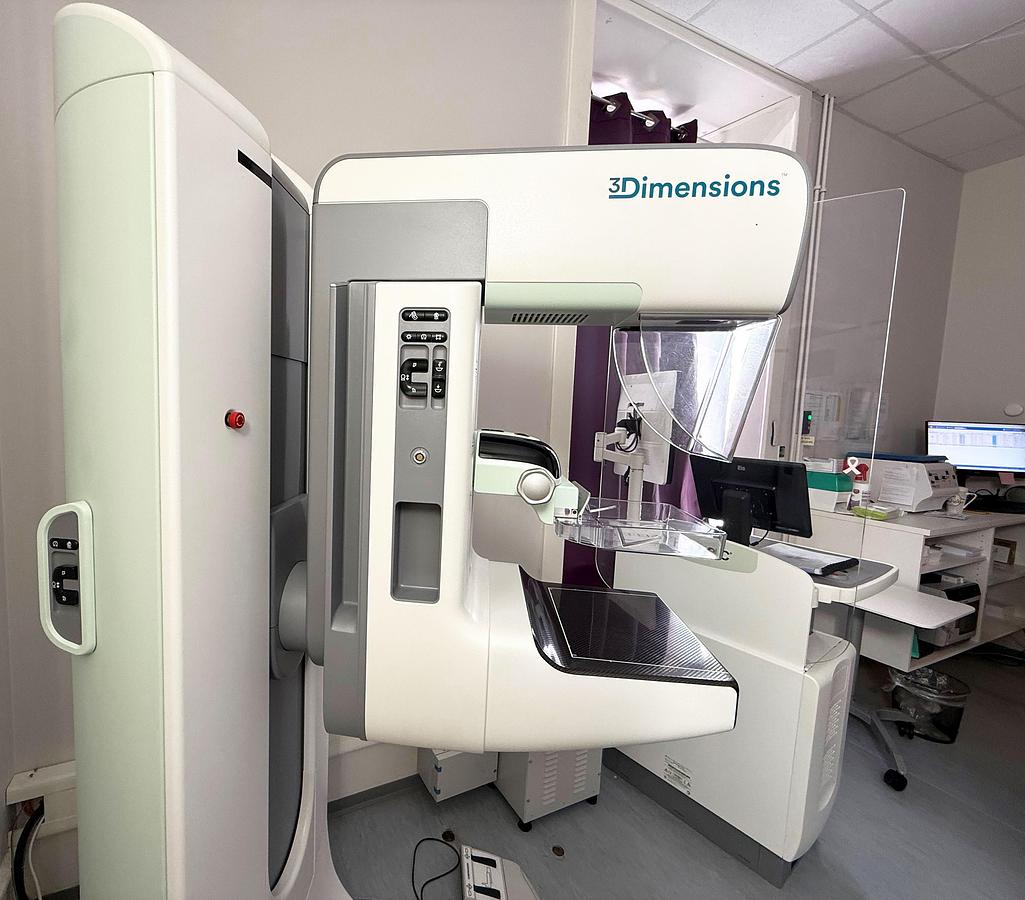

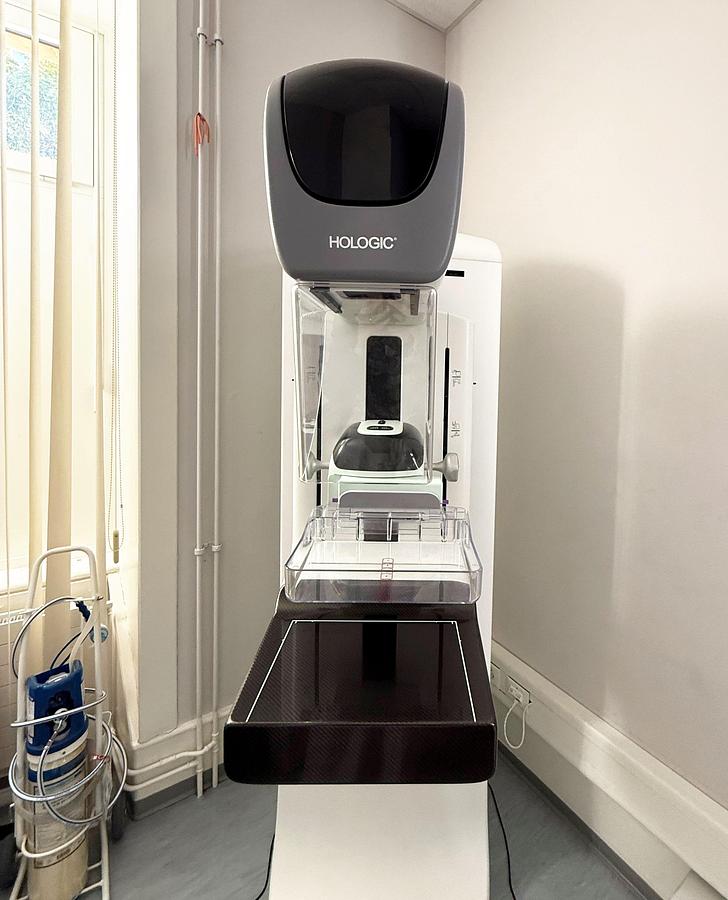

HOLOGIC 3DIMENSIONS 2D AWS 9000 MAMMOGRAPH with amorphous selenium detector

HOLOGIC 3DIMENSIONS 2D AWS 9000 MAMMOGRAPH with amorphous selenium detector

Technical details and configurations

STANDARD

Generator

• Power: 7.0 kW, 200mA at 35 kV

• Maximum power: 9.0 kW

• kV range: 20 kV to 39 kV in 1 kV steps

• mAs range: 3.0 mAs to 400 mAs

• mA range: 10 mA to 200 mA, large focus

10 mA to 50 mA, small focus

Tube

• Anode: Tungsten, rotating

• Anode type: Bi-angular

• Rotation: 9500 rpm)

• Angle: 16º (large focus), 10º (small focus)

• Heat capacity: 300,000 HU (222 kJ)

• Focus: 0.1 (small), 0.3 (large) according to IEC

• Filtration: 0.050 mm Rhodium (Rh), 0.050 mm Silver (Ag), 0.7 mm Aluminum (Al)

• Window: Beryllium

Exposure

• 1.2 mGy for ACR Phantom: Conventional mode

• 1.4 mGy for ACR Phantom: Tomo mode

Collimation

• Collimation mode: automatic or programmable

• Predefined: 24 cm x 29 cm

18 cm x 24 cm

15 cm x 15 cm

10 cm x 10 cm

7.0 cm x 8.5 cm

C-arm

• Vertical movement: 71 cm to 142 cm, motorized

• Rotation: +195º to -155º

• SID: 70 cm

• Face protection: can be folded down or retracted by pivoting

Compression mode (user-selected)

• Pre-Compression: 70 to 134 Newton, motorized

• Compression: 89 to 178 Newton, motorized

• Dual compression: First margined with pre-compression, increase of

stepwise compression with each activation until full compression

• Manual compression: 300 N maximum

• Compression pallet tilt: fixed or elastic

Magnification : Factor 1.5 or 1.8

Power supply

• Supply voltage: 200/208/220/230/240 VAC nominal ± 10%

• Input current: 40 A single-phase or min. 3 x 25A with additional transformer

4 A pause, max. 65A 5 sec.

Standard component

• “Screening” compression palette: 24 x 29 cm

                                                            18 x 24 cm

                                                            Special palette for small breasts

• Enlargement palette: 10cm palette

• Accessories: Face protection

Magnification table

2 dual-function control pedals

Digital receiver

• Type: TFT detector, direct digital conversation, 24x29 cm

• Technology: Amorphous selenium

• Resolution: 70μm, 3328x4096 pixels, 14 bit

• Anti-diffusion grill: Self-retracting for enlargement

Hologic Dimensions AWS 9000

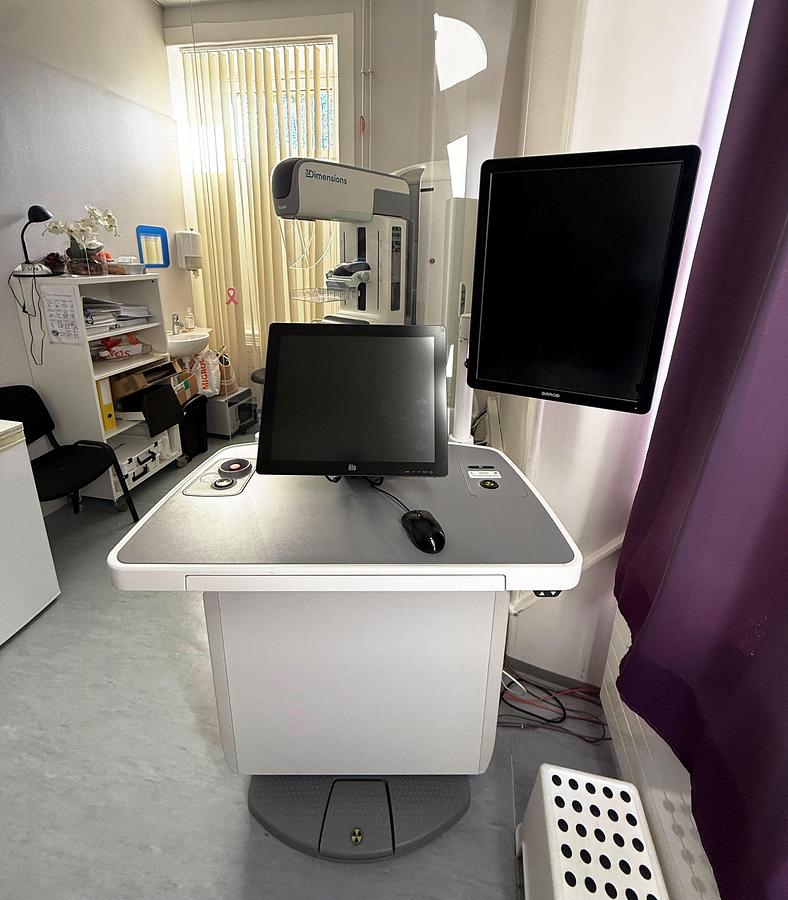

AWS - Acquisition Workstation

• Processor/CPU: Multi-Core Intel

• RAM: 32 GB RAM

• Hard drive: 1 TB

• Archiving: DVD +/- R/W

• Display Monitor: 2MP, Medical Monitor with DICOM Pre-sets

• User monitor: 1.2MP LCD touch monitor

• Operating system: WIN 10

• DICOM service classes: Worklist, Storage, Storage Commitment, Query/Retrieve,

• IHE Profile: Scheduled Workflow, Patient Information Reconciliation

and Mammography Image

• User interface: Keyboard, Touchpad, Mouse

• Personalized height adjustment (84-114cm, with login)

• Safety power supply: UPS 230

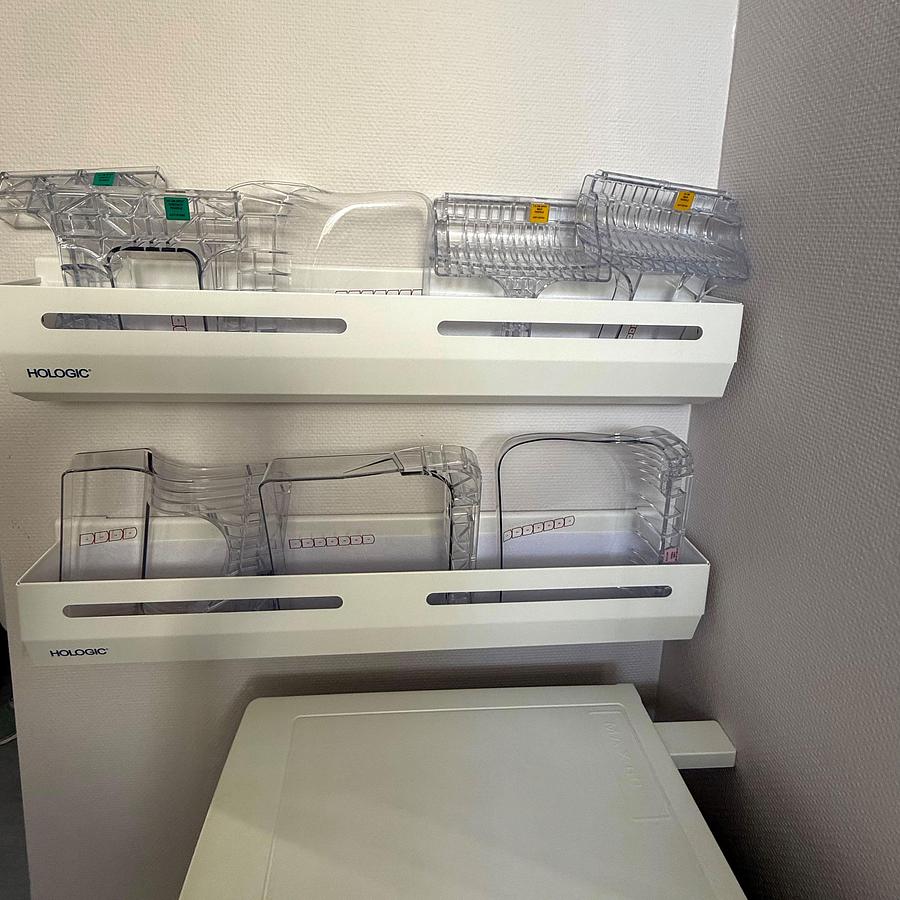

Hologic Paddle Rack

• Storage: 2 to 3 compression pallets

• Dimensions: lxdxh = 92 x 10 x 18 cm

• Material: Aluminum with RAL 1013 coating (pearl white)

with antistatic inner lining

9kVA transformer

• DRUE4400, 3AC400V+N / AC230V

• For connection with 3x 25A
