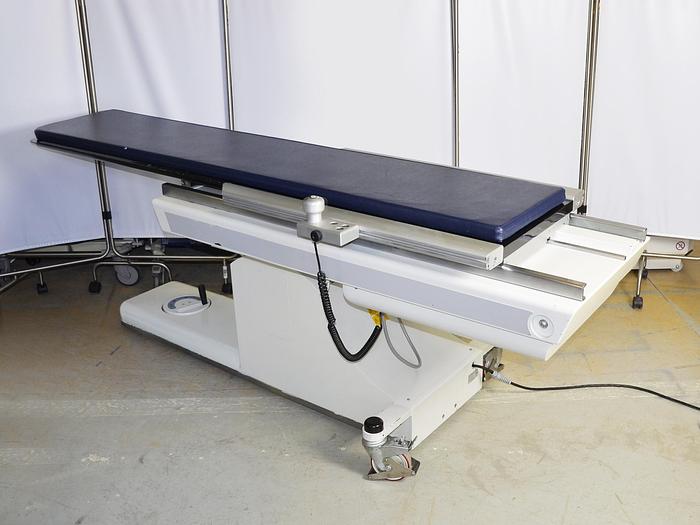

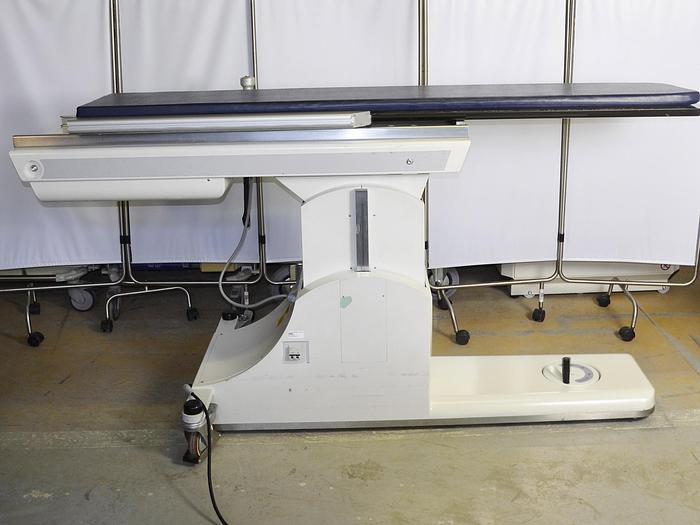

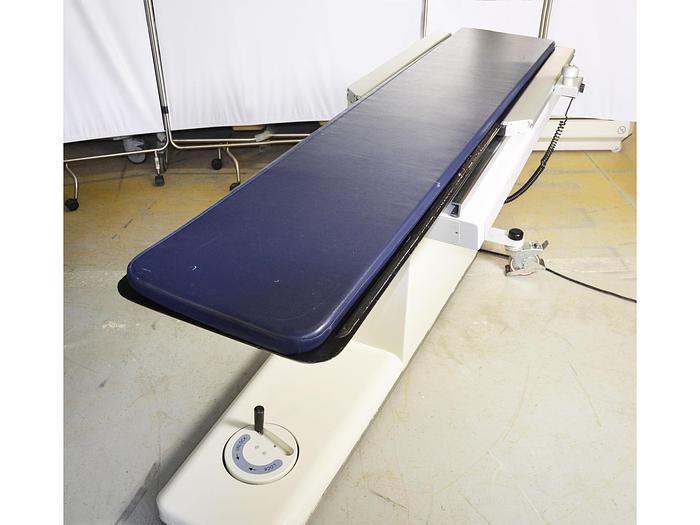

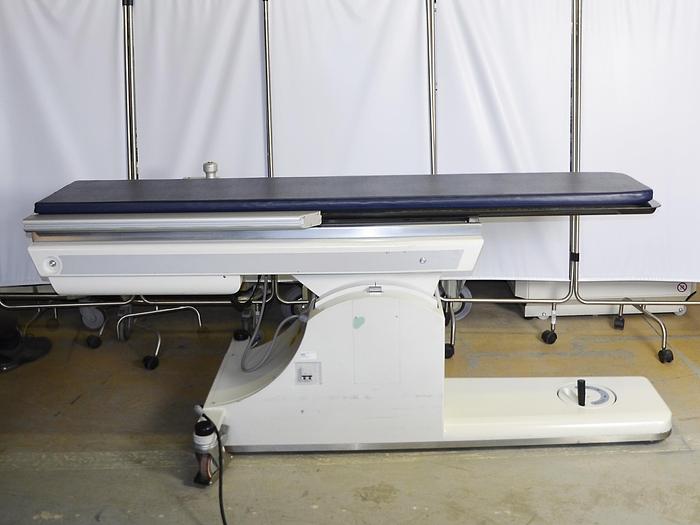

MOBILE INTERVENTIONAL RADIOGRAPHIC TABLE WITH FLOATING CARBON FIBER TRAY CT160 F

SPECIFICATIONS

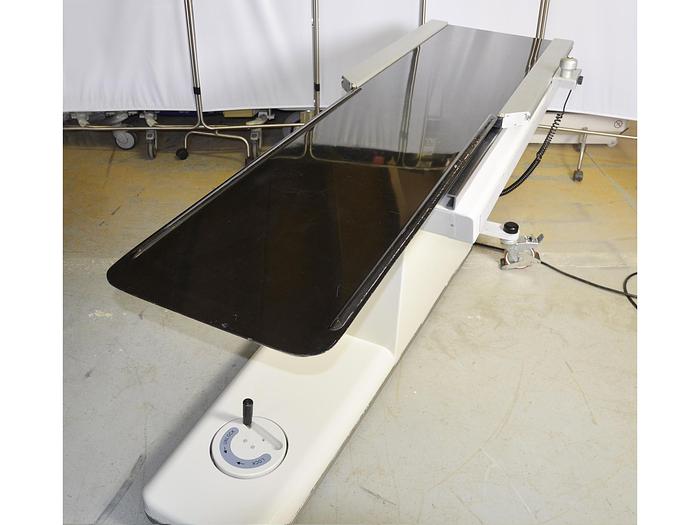

• Carbon fiber table top

• Rectangular carbon chainring as standard (anatomical on request)

• Total length: 210 cm, Radiolucent length: 160 cm

• Radiolucent overhang: 113.2 cm

• Total width: 61.8 cm, Width of the radiolucent tray: 45.7 cm

• Thickness of the top: 3.3 cm

• Equivalent absorption mm Al: 0.7

• Maximum admissible load: 180 kg

• Fixing accessories on 25 x 10 side rails

• Attachment of accessories to carbon fiber plate

• Manual lateral movement stroke ± 14 cm

• Blocking of the table top by electromagnetic brake

• Force required for lateral movement (without patient): 10 N

• Manual and motorized longitudinal movement travel 100 cm

• Force required for longitudinal movement (without patient): 15 N

• Overhang Max. 160cm

• Motorized vertical movement

• Minimum height: 82 cm, stroke: 28 cm

• Movement speed: 1.3 cm/s

• Wired control remote

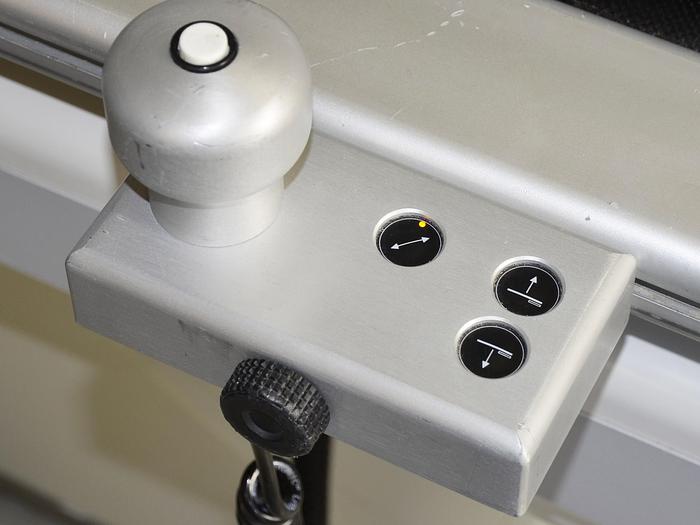

• Moving the table plan by Joystick with button

 pusher on top

• Adjustment of up/down using pressure pushers on the

 remote

• 1-axis/2-axis lock button on remote control
