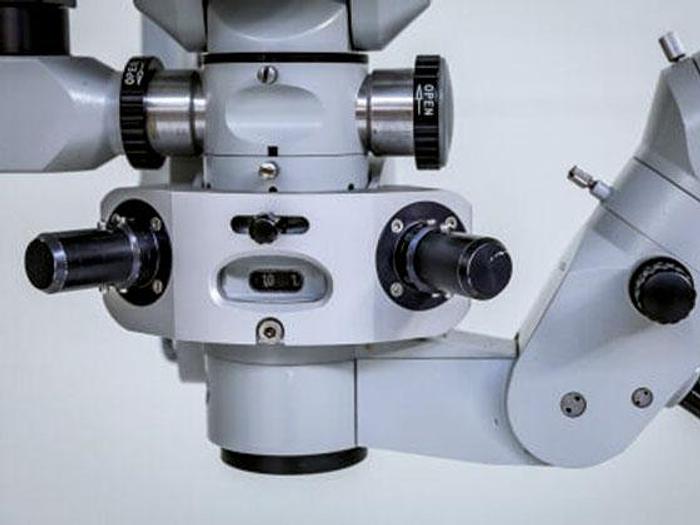

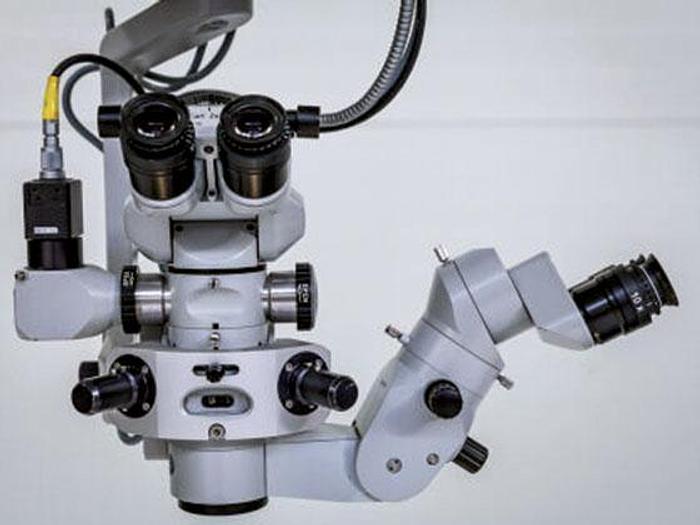

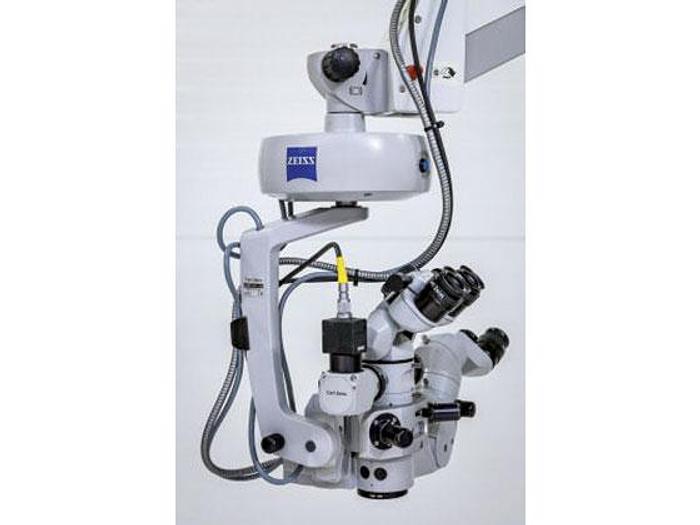

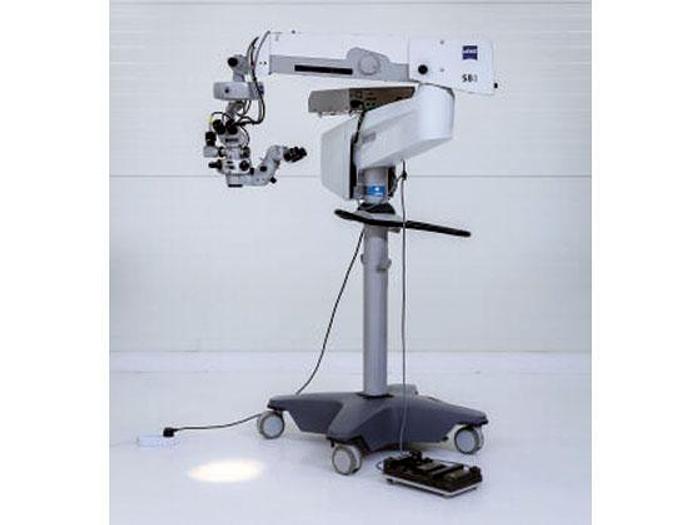

OPERATING MICROSCOPE CARL ZEISS VISU 200

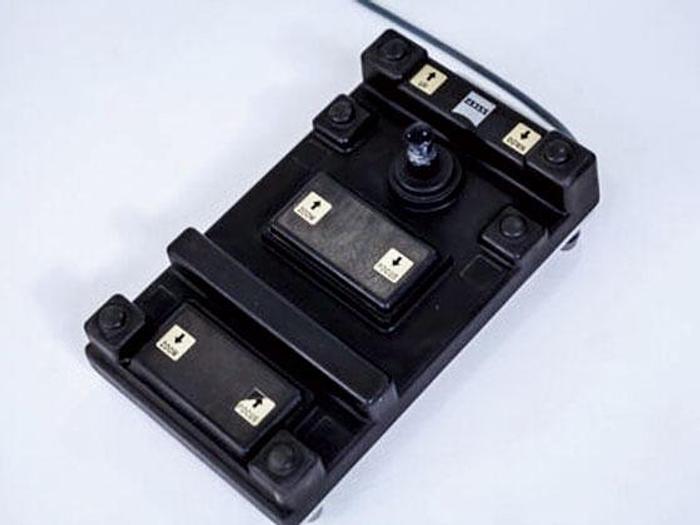

MAIN FEATURES Main microscope - Apochromatic optics - Motorized zoom system, zoom ratio: 1: 6 - Focusing range: 50 mm - Inner tube 50°, f=170 mm - Eyepieces: 12.5x - Objective lens: f=175 mm - Magnifications: 5x - 30.1x - Field of view diameter: 7.5 - 44.9 mm Electrical design - Protection class 1, type B Lighting - Fiber optic light guide, two lamp housings, each with two 12 V 100 W halogen lamps - Automatic switchover to emergency lamp in the event of lamp failure - UV filter - Protection against infrared exposure - Foot-operated light intensity control Lighting geometry - Patented 2° red reflex lighting with +2° and -2° settings, DE 40 28 60 5 C2 6°, with continuous fade option - Patented retinal protection device, DE 33 39 17 2 C2 - Patented field stop to reduce glare, G 91 03 43 3 7 Weight - VISU 200 (without accessories): 13 kg - Ground support S8 approx. 200 kg - Maximum weight capacity of suspension arm (including VISU 200): 20 kg
