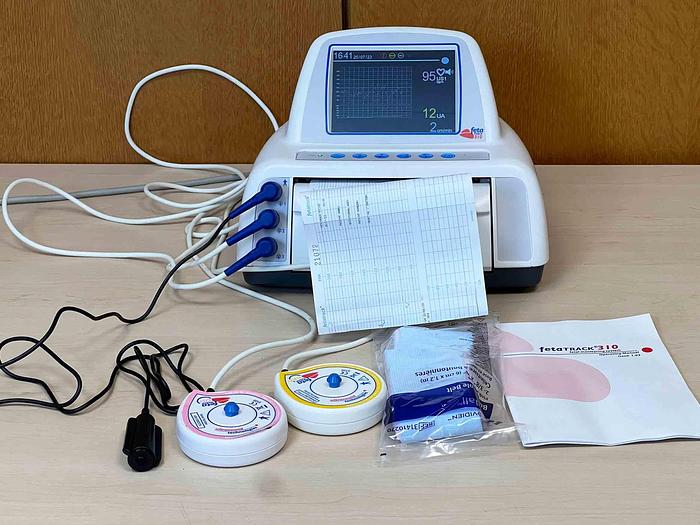

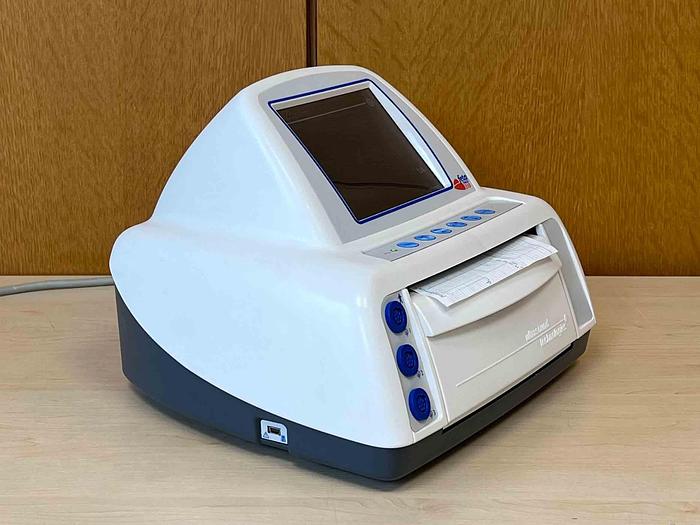

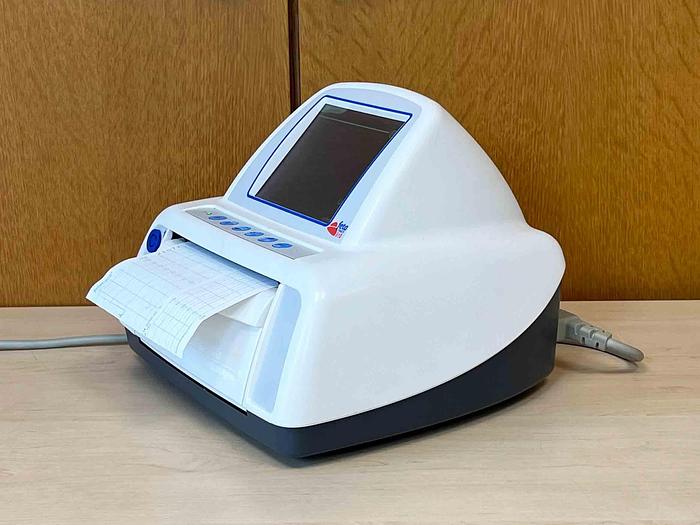

FETATRACK 310 CARDIOTOCOGRAPH

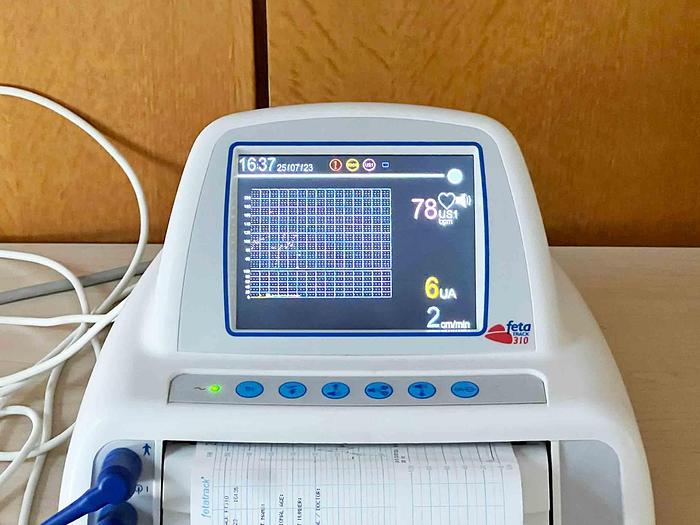

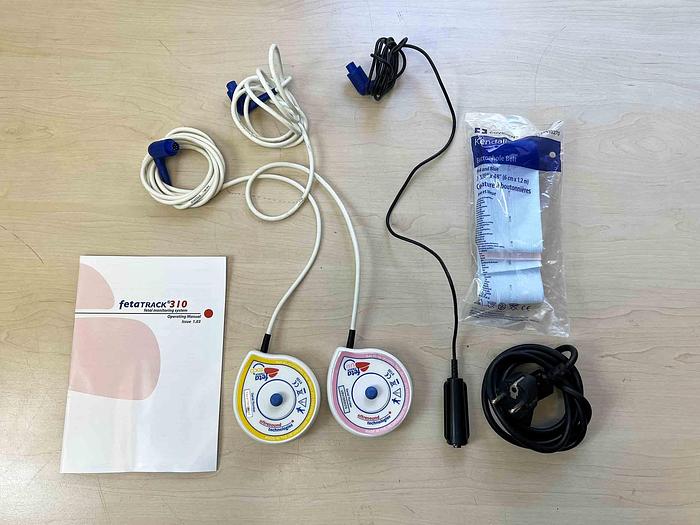

It's a fetal monitor designed to provide affordable, quality care throughout pregnancy. The FETATRACK®310 can be configured as an antepartum or intrapartum monitor for use in maternity wards, antenatal clinics or doctors' surgeries. The FETATRACK®310 can monitor fetal heart rate with low-power ultrasound or fetal ECG, external uterine pressure with an external tocodynamometer, and intrauterine pressure. The measurements taken are displayed on a graphic LCD screen and the data are recorded on a high-resolution thermal printer. Fetal heart rate is monitored via ultrasound Doppler transducers. The FETATRACK®310 is equipped with a bradycardia and tachycardia alarm and memory function. FEATURES ULTRASON Type: Continuous Doppler Transducer: wide-angle, multi-element Operating frequency: 1.5 MHz ±2%, 1.6 MHz ±2% or 1.7 MHz ±2%. Output power: SATA 5 mW/cm2 max. Audio: Response 300 to 1 KHz Range: 30 to 250 bpm Heart rate processing: High-resolution multi-point digital autocorrelator EXTERNAL UTERINE ACTIVITY Type: Differential external pressure transducer Response: 0 to 5 Hz Signal range: 0 - 110 relative intensity of contractions ALARMS Low level: 90-120 BPM, adjustable in 5 BPM steps Processing : Bradycardia algorithm or level detection High level: bradycardia algorithm or level detection Processing: Tachycardia algorithm or level detection End of paper: Last sheet of paper PRINTER Print head: 128 mm thermal print head Resolution: 8 dots/mm Speeds: 1,2,3 cm/min. Print speed accuracy: Better than 1%. Paper: 145 mm wide x 100 mm page x 15 m long, accordion-folded Measurement scale: RCF: AU 20 or 30 b/cm: 0-100 Paper type: Pre-printed or plain black thermal paper DISPLAY Screen type: Color, LED backlit, graphic LCD Screen size: 115x86 mm Numeric data screen: RCF, AU, Print speed Graphic data display: RCF, AU SCREEN/PRINTER RANGES RCF ranges: 30-240 BPM RCF accuracy: ±1 BPM AU range: 0-110 units AU accuracy: ±10% of full range POWER SUPPLY AC input voltage: 100-130 V AC or 200-260 V AC Frequency: 46-64 Hz Power: 30 VA Fuses: High breaking capacity - T0.25 A 230 V or T0.50 A 115 V Safety: Conforms to EN60101-1 Class 1 Type B Isolation: Mains supply can be isolated by disconnecting the AC power cord PROTECTION Material: PC/ABS Weight: 4 kg Size: 290 x 260 x 220 mm EVENT MARKER Portable: user-supplied pendant switch Keypad: User-programmable keypad Automatic: Ultrasonic transducer detected COMPUTER INTERFACE Standard: RS232, 9600 baud, 8 bits no parity 1 stop bit
