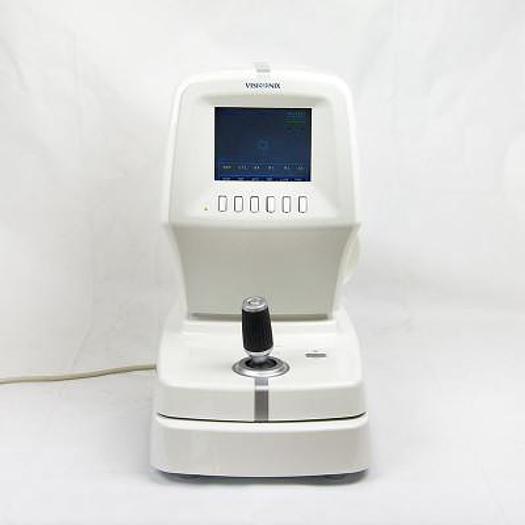

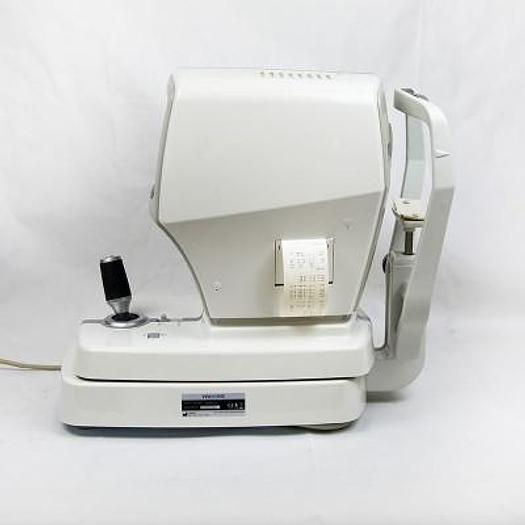

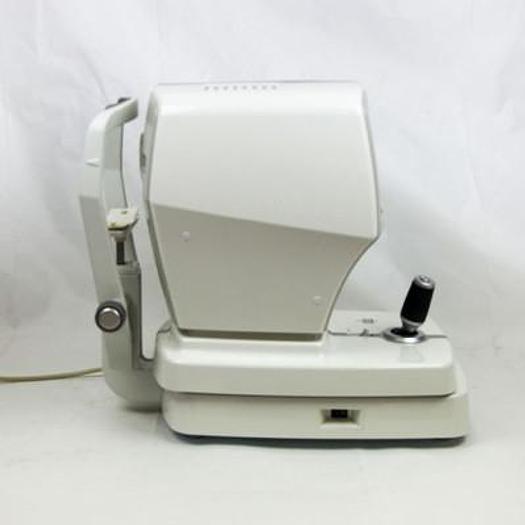

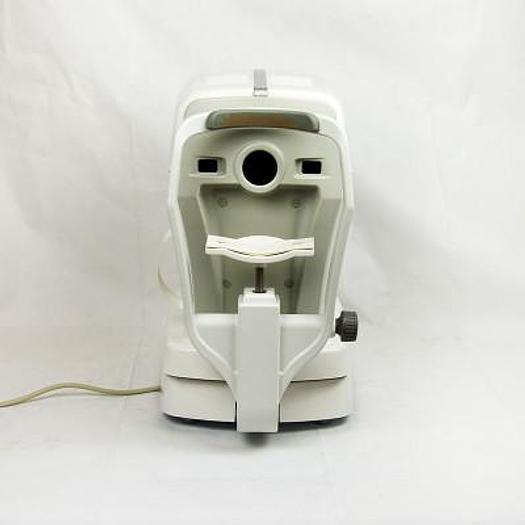

AUTO KERATO REFRACOMETRE L67 VISIONIX
AUTO KERATO REFRACOMETRE L67 VISIONIX
Fr4,252 (CHF)
or
Call + 41 (0)27 720 41 00
Description
The L67 is an auto-refractive keratometer for automatic refraction and keratometry measurement. It is also equipped with retroillumination for cataract detection. Class I medical device + measurement function/Certified by SGS/CE0120.
The information contained in this document is intended for healthcare professionals.
MEASUREMENT MODES
REFRACTION
KERATOMETRY
GENERAL DATA
Automatic 5-minute standby : As programmed, after non-use
Specifications
| Condition | Used |
| Stock Number | 6062 |
| Dimensions | W252 x D432 x H500 |
| Weight | 20 Kg |
| K/r | Refraction and keratometry measurement |
| Ref | Refraction measurement |
| Ker | Keratometry measurement |
| Clbc | Measuring the radius of curvature of contact lenses |
| Measuring distance | 0, 12, 13.5, 15 mm |
| Sph value | -25 D ~ +22 D (steps of 0.12 / 0.25 D) |
| Cyl value | -10 D ~ +10 D (steps of 0.12 / 0.25 D) |
| Axis | 1 ~ 180° (1° steps) |
| Cyl sign | -, +, ± |
| Pd measurement range | 1 ~ 85 mm |
| Minimum pupillary diameter | Ø 2 mm |
| Corneal refractive power | 33.00 D - 67.5 D |
| Corneal radius measurement | 5.0~10.2 mm (0.01 mm steps) |
| Corneal cylinder value | -15 D ~ +15 D |
| Axis value | 1 ~ 180° (1° steps) |
| Cornea diameter measurement | 2.0 ~14.0 mm |
| Integrated printer | Paper printer |
| Screen | 6.5" TFT LCD color display |
| Food | AC 100 / 240 V / 50 / 60 Hz |
| Power | 250 W |
| External interface interface | RS-232C |
| Memory | 10 measurements / eye |
| Not | 8VK3D2401 |
