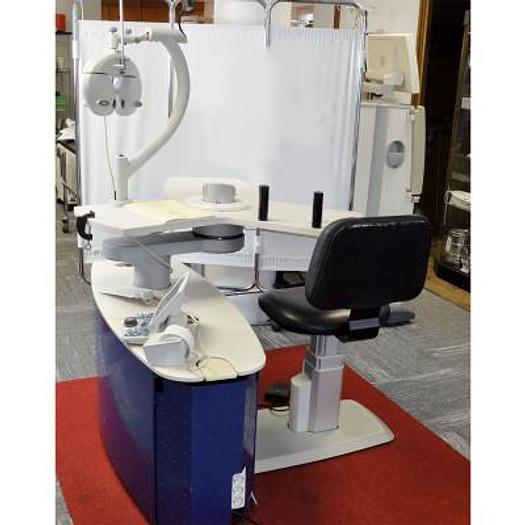

OPHTHALMOLOGY CONSULTATION SUITE

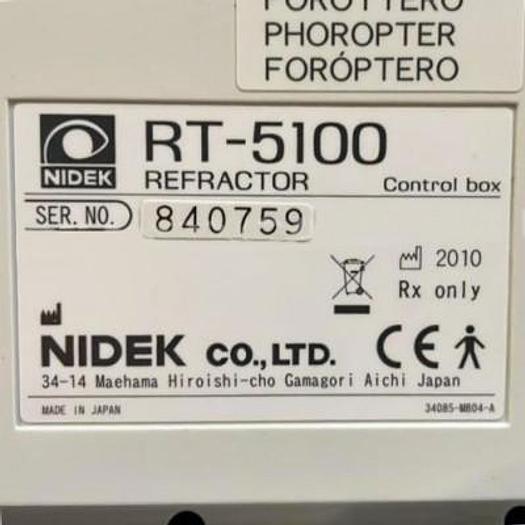

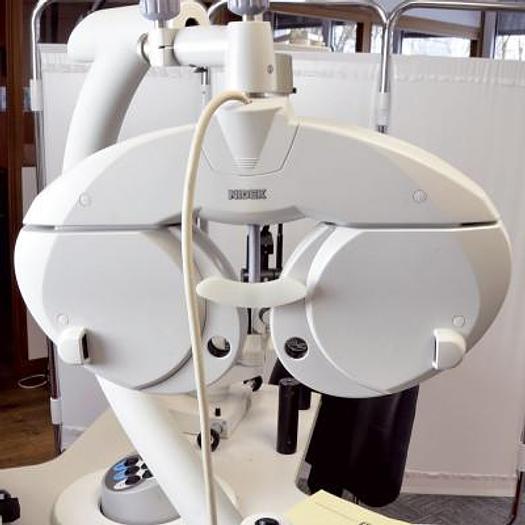

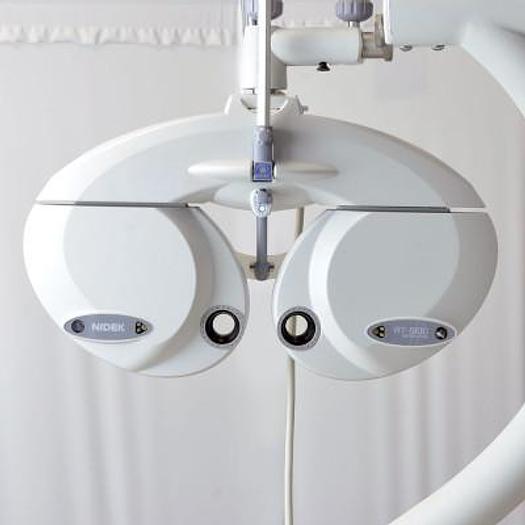

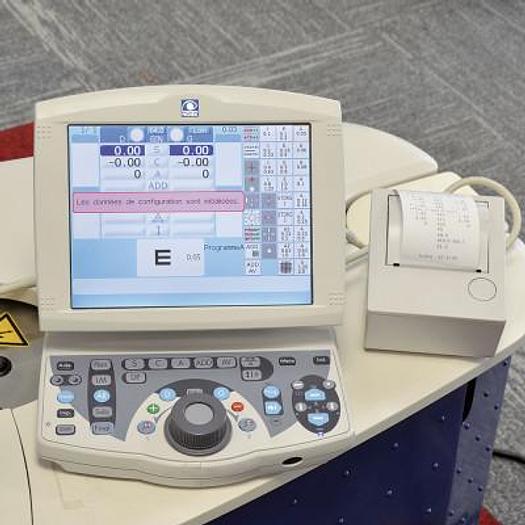

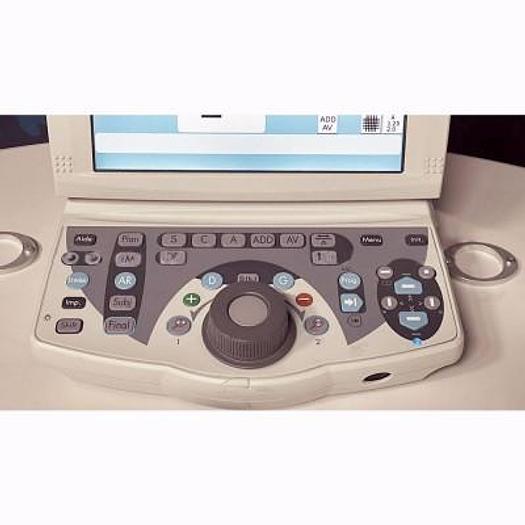

- Electrically height-adjustable from 80 to 93 cm, with drawers for 232 trial lenses. - Arm-mounted refractor fixed to the tabletop (tiltable for near vision as an option). - 360° swivel - Maximum load 250 kg. CHARACTERISTICS OF THE NIDEK RT 5100 AUTOMATIC VISIOMETER REFRACTOR : Measurement ranges - Sphere from -29.00 to 26.75D (steps of 0.12/0.25/1/2/3D) - Cylinder from 0 to ± 8.75D (steps of 0.25/1/2/3D) - Axis from 0 to 180º (steps 1/5/15°) Pupil distance - 48 to 80 mm (0.5/1 mm steps) - 50 to 74 mm (VP mode at 35 cm, 0.5/1 mm steps) - From 54 to 80 mm (VL mode, maximum convergence amplitude) - Prisms From 0 to 20 ∆ (steps of 0.1/0.5/2 ∆) - Auxiliary lenses - Crossed cylinder lenses ±0.25D/±0.5D/±0.25D auto mode - Eye shield - Pinhole ø 2 mm - Red Maddox Right eye: horizontal, left eye: vertical - Red/green filters Right eye : R, left eye: V - Polarized filters Right eye: 135/45°, left eye: 45/135°. - Pupillary deviation control - Fixed crossed cylinder lens ± 0.50 D (fixed at 90°) - Spherical retinoscope lenses +1.5 /+2.0 D - Dissociating prisms Right eye: 6 ∆ upper base, left eye 10 inner base - Refraction distance for VP from 350 to 700 mm (50 mm steps) - Field of vision 40° (VD=12mm) - Front rest adjustment range 14 ± 2mm - VD scale 12, 14, 13.75, 16, 18, 20 mm - Level adjustment ± 2.5 - 8.4" TFT color LCD touchscreen.
