ENDOSCOPY CAMERA DP MEDICAL ECOCAM
ENDOSCOPY CAMERA DP MEDICAL ECOCAM
Fr1,260 (CHF)
Available quantity:4
or
Call + 41 (0)27 720 41 00
Description

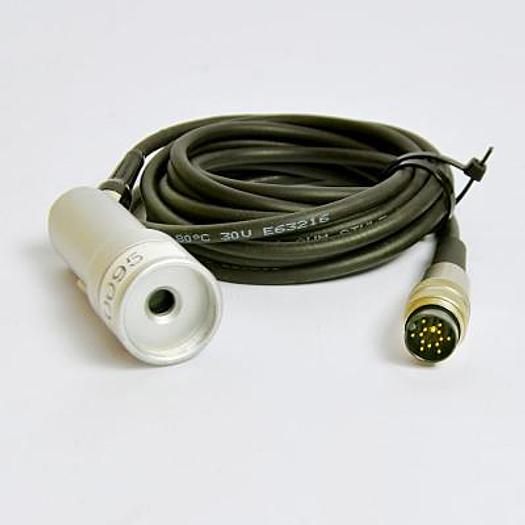

TECHNICAL SPECIFICATIONS: CAMERA HEAD 4:3
- Immersible (using the attached cap)
- Video system - PAL/NTSC
- White balance automatically, with data hold shutter speed PAL (NTSC): 1/50 (1/60) to 1/100.000 sec
Video out terminal - 1x Video (1Vpp/75 Ώ), BNC
- 1x S-Video (Y/C)
- Mini-DIN-connector
Features - White balance
- Window functions
- Boost function
- Anti-moiree-filter
Specifications
| Condition | Used |
| Stock Number | 8920 |
| Image sensor | 1/3'' CCD |
| System - power supply | 100/240VAC, 50-60Hz |
| Fuses | 2 Fine fuses, 5x20 mm, delay acting 3.5 AH (l=1500A) |
| Power consumption | 15W |
| Image resolution | PAL 3x 752x582 / NTSC 3x 768x494 |
| Tv resolution | 470 lines |
| Sensivity | < 1lux (1/1.4) |
| Standard - protection class | I |
| Application part | Type BF |
| Iec 601-1, en 60601-1; acc. classification 93/42/eec | I |
| Dimensions - control unit | 176 x 72 x 202mm (WxHxD); 1.6kg |
