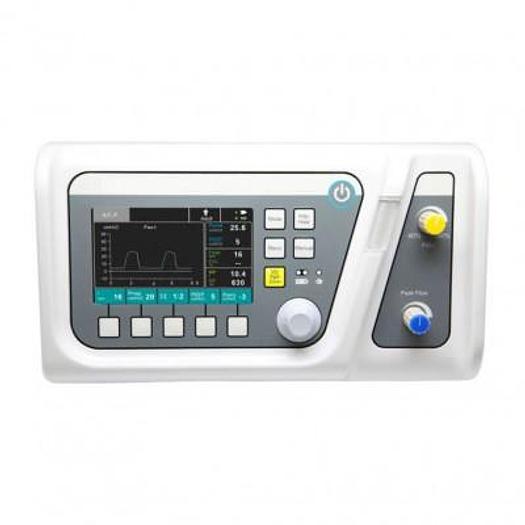

EMERGENCY RESPIRATOR FOR AMBULANCE
EMERGENCY RESPIRATOR FOR AMBULANCE
Fr5,460 (CHF)
Available quantity:1
or
Call + 41 (0)27 720 41 00
Description
TECHNICAL SPECIFICATIONS
Ventilation modes:
A / C-V with Sigh A / C-P
SIMV-V SIMV-P
SPONT / PSV CPAP MANUAL
Parameters:
- I: E ratio: 1: 10 ~ 4: 1
- Trigger sensitivity: Pressure trigger: -20 ~ 0 cmH2O
- Flow trigger: 2 ~ 30 L / min - PEEP: 0 ~ 30 cmH2O
Monitoring:
Technical data:
Alarms:
Paw high Paw low MV high Gas supply down No VT FiO2 high FiO2 low Apnea Continuous pressure high / CP high EX. power lost O2 deficiency Battery low
VENTILATOR CONFIGURATION LIST:
- Threaded silicone circuitΦ22
- Silicone circuit 1.4 m, Ф3x1.5
- Exhalation valve
- Elbow
- Adult mask
- Adult headband
- Lung test 1L
- Vapor Lock connector
- 2 fuses 5 * 20
- 2 filters
- 2m oxygen line, European standard
- Mains adapter cable
- European standard power cable
- English operation prompt card
- Silicone sampling tube
- Flow sampling probe
- Shangrila510S user manual
Specifications
| Condition | New |
| Stock Number | 8435 |
| Tidal volume | 0 ~ 2000 ml |
| Respiration rate | 1 ~ 120 bpm (A / C mode) 1 ~ 40 bpm (SIMV mode) |
| Fio2 | 40% ~ 100% |
| Pressure value | Ppeak, PEEP |
| Volume / flow value | Vt, MV |
| Time value | ftotal |
| Real-time curves | pressure-time, flow-time |
| Feed gas | O2, 0.25 ~ 0.6 MPa |
| Food | AC100 ~ 240 V, 50 Hz / 60 Hz, ≤65 VA |
| Screen size | 5-inch LCD screen |
| Maximum safety pressure | ≤8 KPa |
| Compliance | ≤4 ml / 100 Pa |
| Dimensions (wxdxh) | 168 mm x 156 mm x 300 mm |
| Battery operating time | approx. 4.5H |
| Weight | 3.2 kg (main unit) 8 kg (main unit and accessories) |
