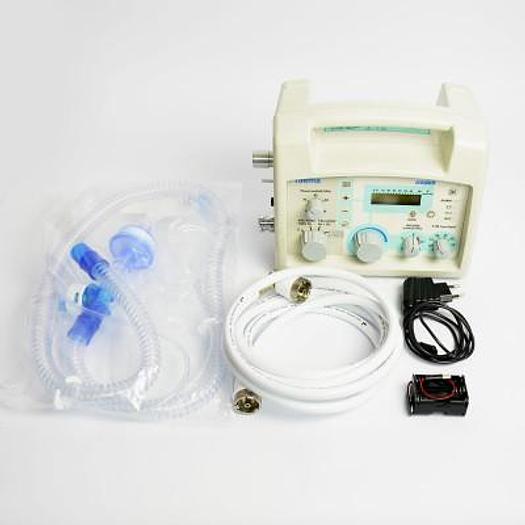

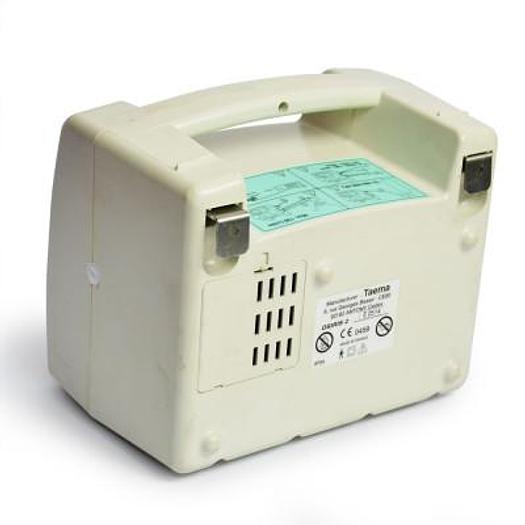

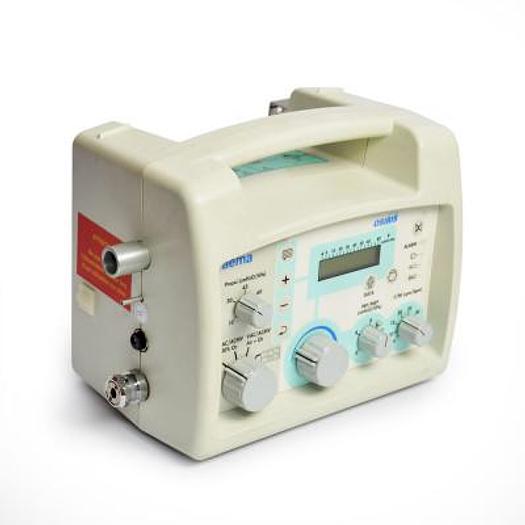

TAEMA OSIRIS 2 EMERGENCY RESPIRATOR

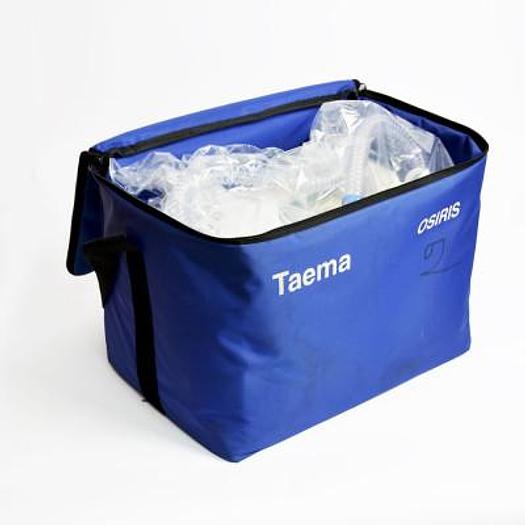

Versatile respirator. - Compact dimensions (250 x 210 x 170 mm). - Weighs 5 kg with carrying case. Shock" ABS shell with integrated carrying handle. VENTILATION MODES : Controlled ventilation (VAC), volume-controlled assisted (ACMV), pressure-assisted spontaneous (VS-AI/PS). VAC ACMV FiO2 adjustable for either pure oxygen or oxygen/air mixture (60% ). Tidal volume (VT) adjustable from 100 to 1500 ml. Frequency adjustable from 6 to 40 c/min. I/E ratio adjustable from 1/1 to 1/3. Integrated Positive Expiratory Pressure (PEEP) adjustable from 0 to 10 cm H2O. In ACMV mode, a pre-set tidal volume is insufflated into the patient circuit with each inspiratory effort, using a constant flow rate. In the event of apnea, the unit will operate on preset safety parameters. VS-AI/PS An inspiratory aid (constant positive pressure), adjustable from 5 to 40 cm H20, is obtained with each inspiratory effort. Positive Expiratory Pressure is generally set between 7 and 10 cm H2O. OPERATING PRINCIPLES : Oxygen supply pressure is 3.5 bar (+/- 0.7) and the unit's own consumption is around 1l/min. The internal batteries, essential for powering the electronic circuit, have a 10-hour autonomy and recharge in 10 to 14 hours. Osiris 2 can be plugged into the mains.
