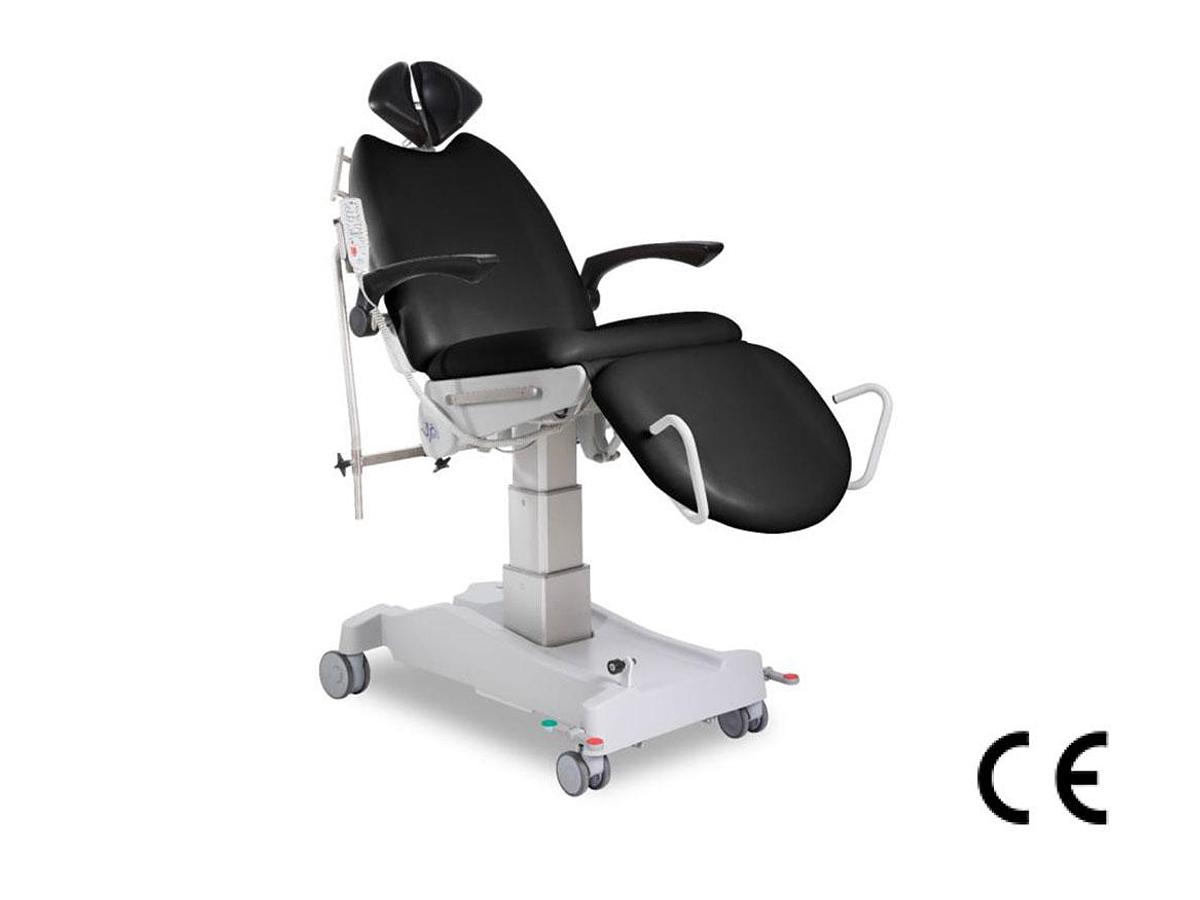

TREATMENT CHAIR FOR OUTPATIENT SURGERY (OPHTHALMOLOGY, ENT, PLASTIC SURGERY, IVOM)

This chair is used in oral and maxillofacial surgery, dental surgery, ophthalmic surgery, in the treatment of AMD – macular degeneration (intravitreal injections) as well as in ENT procedures.

• Thanks to its functionality and additional equipment, it guarantees a high level of comfort for the patient.

• The seat height is adjusted by an electric column protected by an aluminum casing.

• The adjustment of the backrest, seat and leg rest tilt is ensured by electric actuators.

• A headrest is integrated into the backrest.

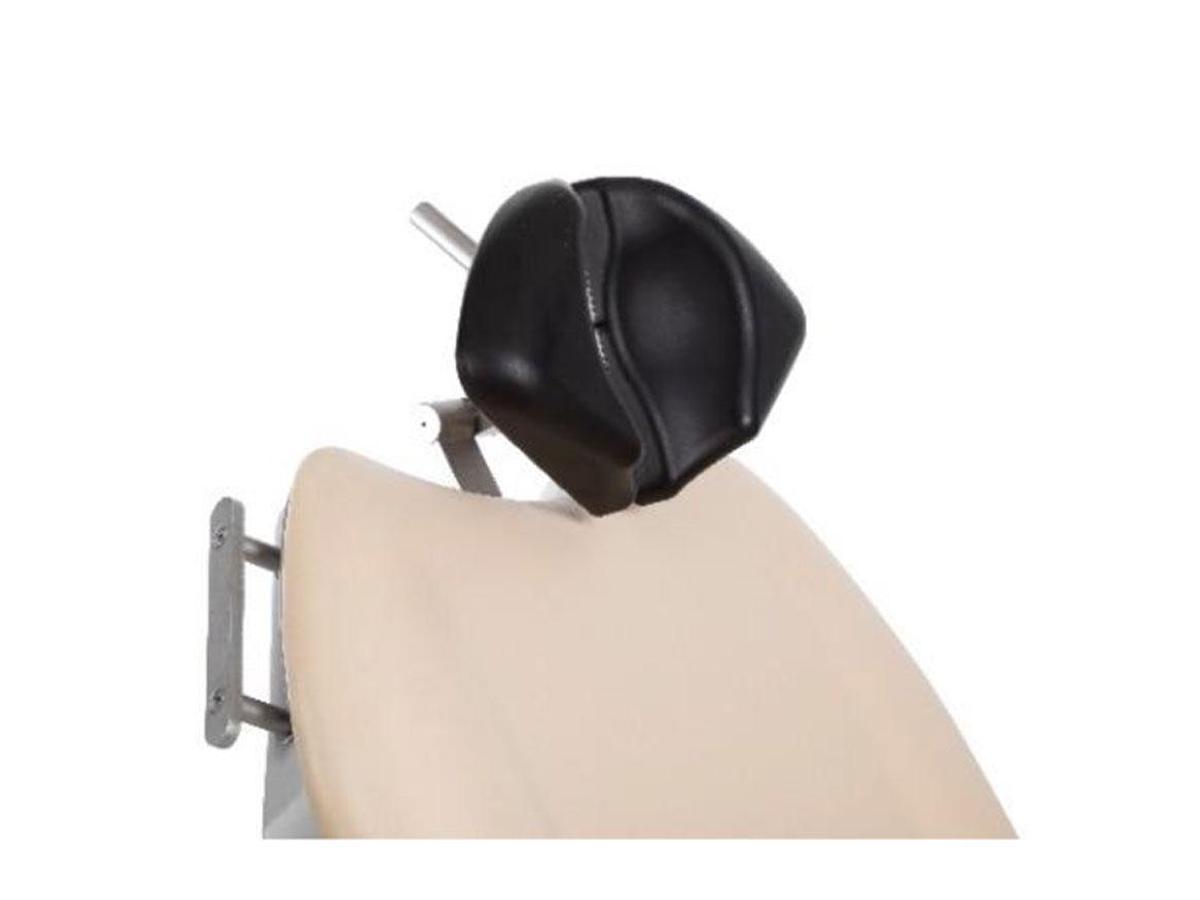

• The headrest is made of special molded polyurethane, stabilizing the patient's head thanks to a specific recess.

• The headrest is adjustable on several axes to prevent any head movement during procedures.

• The chassis is equipped with double plastic wheels with central locking: rear wheels Ø125 mm, front wheels Ø100 mm.

• The seat, backrest and leg rest sections are covered without seams; each section is independent.

• Coating suitable for washing and disinfection with standard agents used in medical settings, phthalate-free, certified for medical use and UV resistant.

• The base, seat and backrest are protected by ABS covers, facilitating cleaning and disinfection.

• The seat and backrest sections are equipped with Euro rails allowing the installation of the necessary equipment.

• As an alternative to polyurethane armrests, the chair can be equipped with side rails.

• The armrests fold down towards the backrest and can be removed without tools, made of special molded polyurethane.

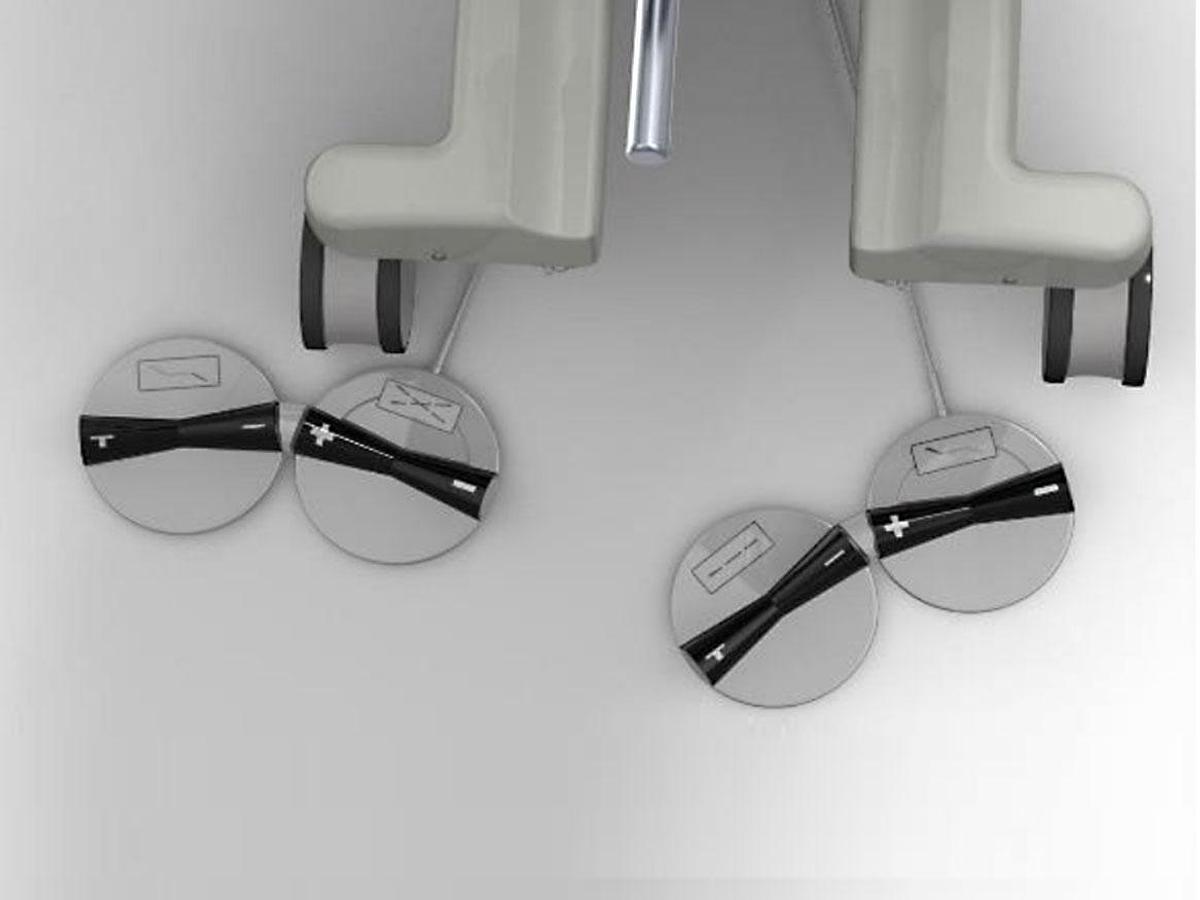

• The chair can be controlled by wired remote control or by foot pedal (foot pedal optional).

• The chair has a programmable control system allowing certain functions to be performed with a single button: starting position, Trendelenburg (red button), memorization of a favorite position — applicable to the wired remote control.

• Battery supplied as standard.

• The leg rest is equipped with handles to facilitate moving the chair.

• The remote control is installed on a special stainless steel bracket, which can be mounted on the right or left without tools.

• Optional:

> Four-hook stainless steel IV pole, can be mounted on the right or left without tools:

https://www.artmedicalsuisse.ch/listings/8367314-used-four-hook-stainless-steel-iv-pole-can-be-mounted-on-the-right-or-left-without-tools

> Foot pedal: https://www.artmedicalsuisse.ch/listings/8367306-pedals-for-outpatient-surgery-treatment-chair-ophthalmology-ent-plastic-ivom

> Side rails: https://www.artmedicalsuisse.ch/listings/8367309-side-rails-for-outpatient-surgery-treatment-chair-ophthalmology-ent-plastic-ivom

Technical parameters

• Total length: 2100 mm

• Total width: 875 mm

• Sleeping surface width: 620 mm

• Height adjustment range: 595 – 970 mm

• Backrest tilt: 80°

• Trendelenburg position: 0° to 13° (1 button), 0° to 18°

• Reverse-Trendelenburg: 3°

• Leg rest angle: 73°

• Maximum admissible load: 250 kg

• Wheel diameter on the leg side: Ø100 mm

• Wheel diameter at the head end: Ø125 mm
